FAN Replacement | XDI/DR-Series

Super Admin
12 Aug 2026
385 views

Environment:

  • 20XDI
  • 25XDI
  • DR-6500
  • DR-8500

SYS FAN Part#:

  • FAN_121528

CPU Fan Part#:

  • FAN_8532

Confirm which fan is having the issue:

20XDI Series

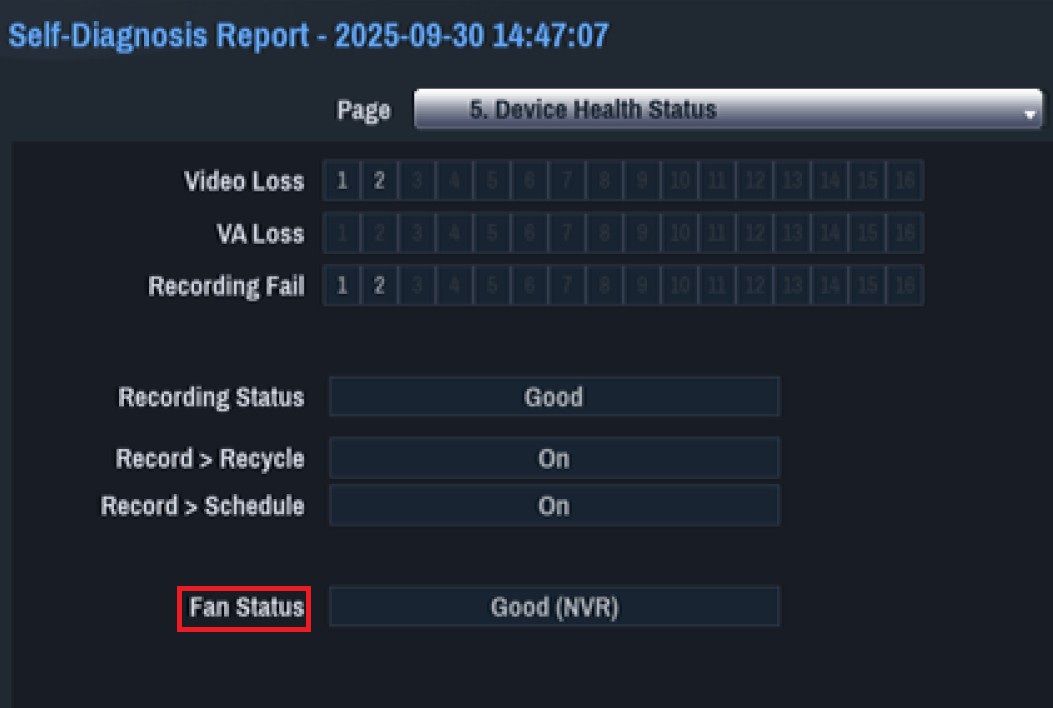

Setup > System>Self-Diagnosis > Run the Self-Diagnosis Report.
20xdi self d .jpg

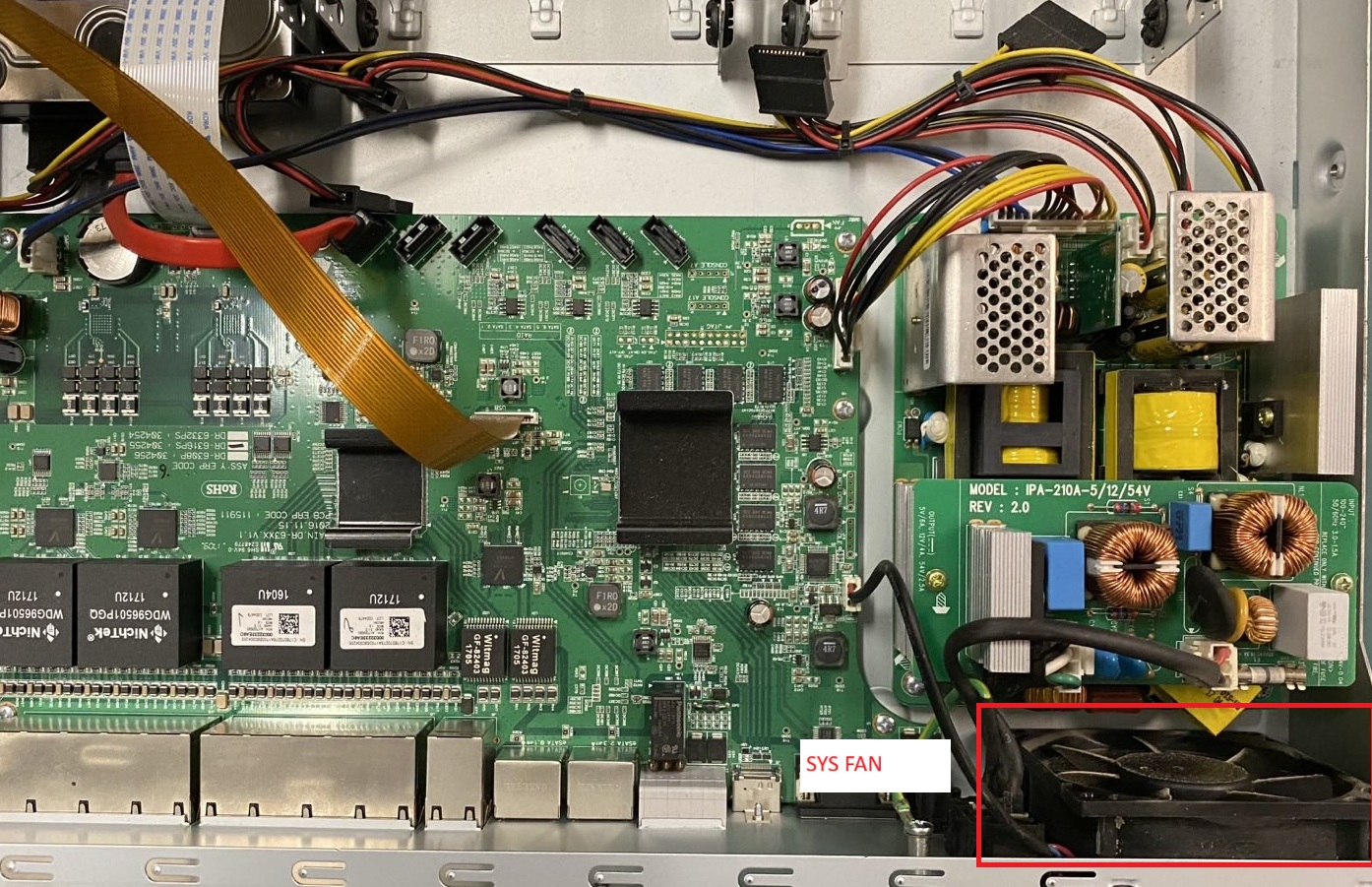

20XDI Fan location
20xdi fan.jpg

25XDI Series

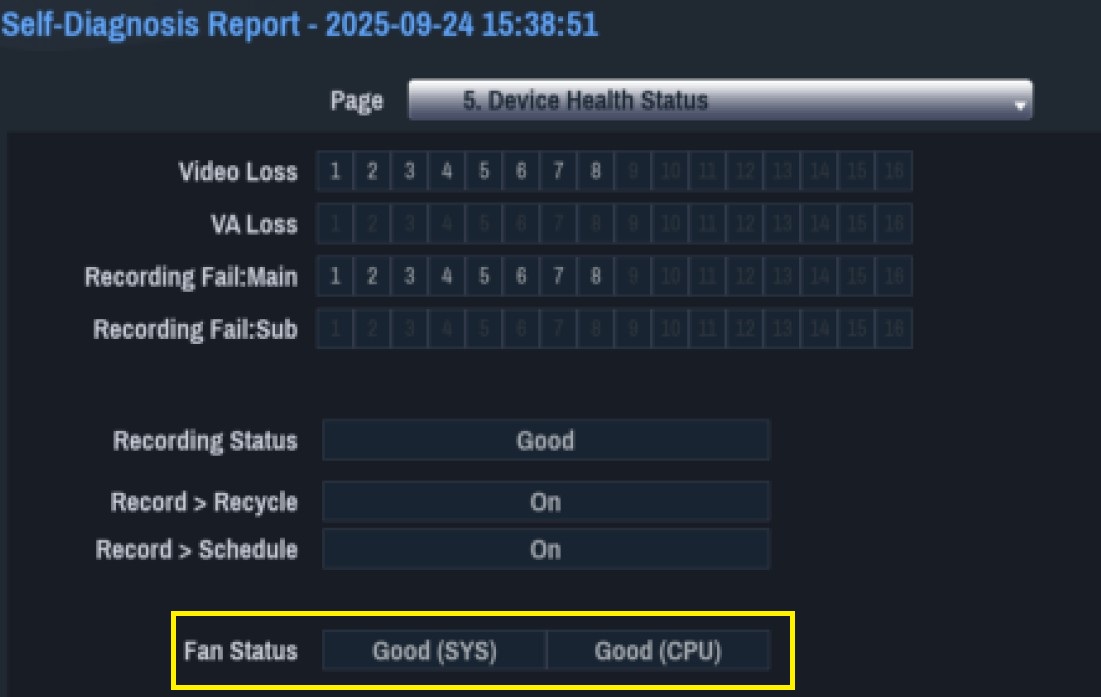

Setup >System> Self-Diagnosis > Run the Self-Diagnosis Report.

25xdi fan.jpg

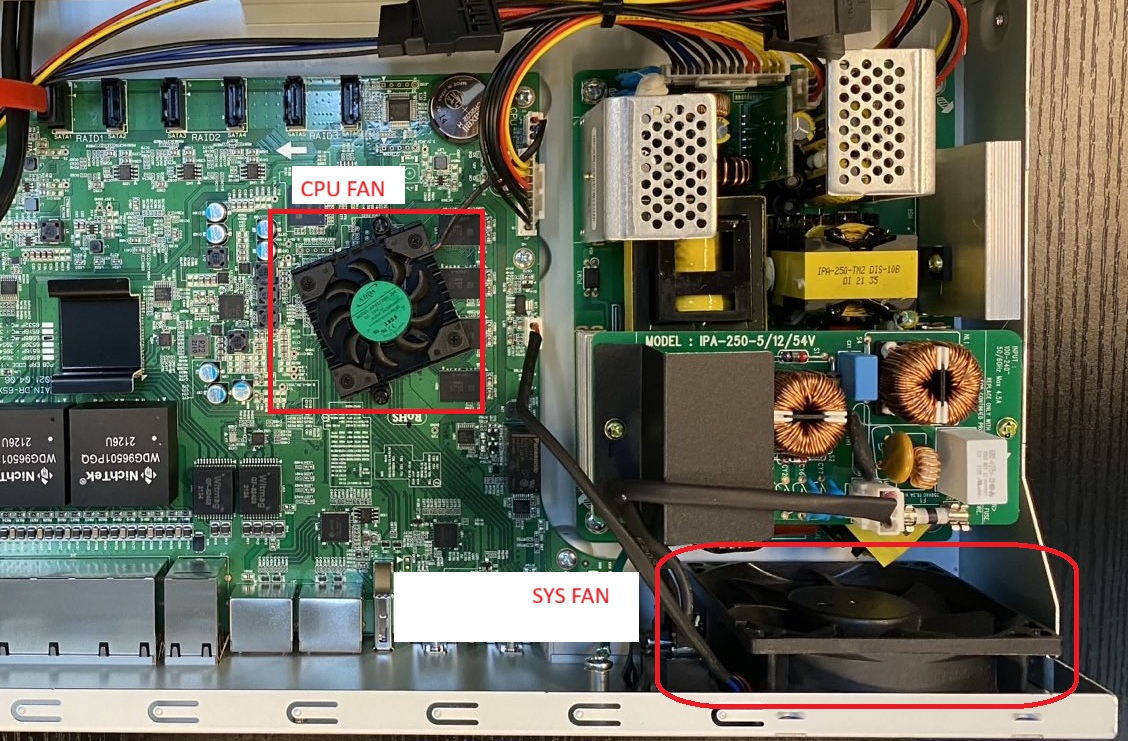

25XDI FAN location


DR-6500 Series

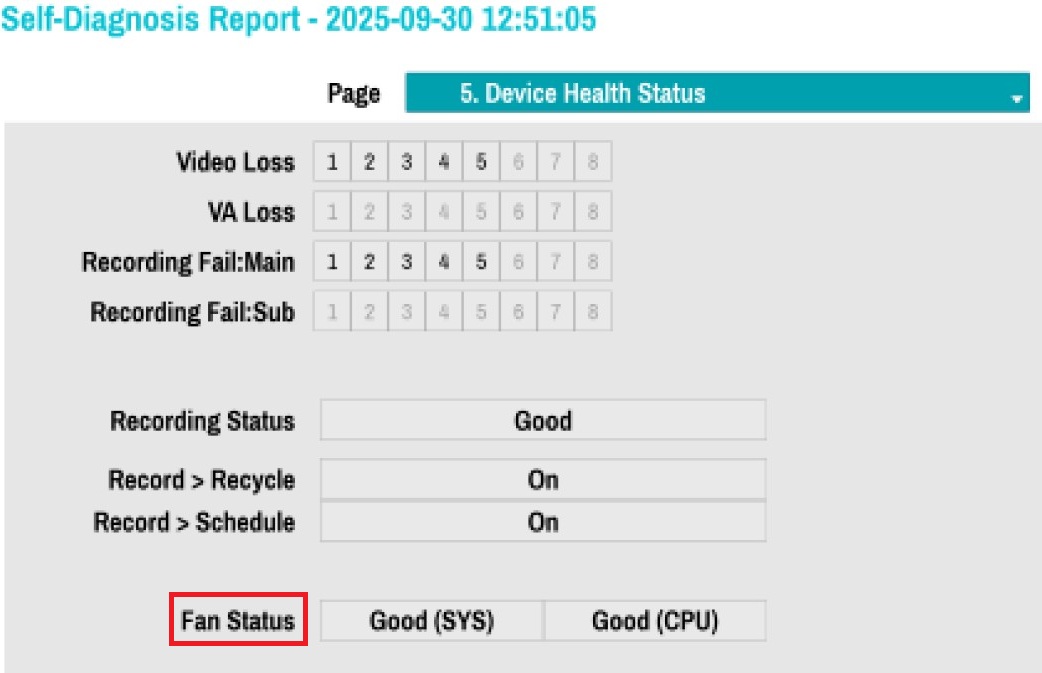

Setup >System> Self-Diagnosis > Run the Self-Diagnosis Report.

dr-6500 self diagnosis.jpg

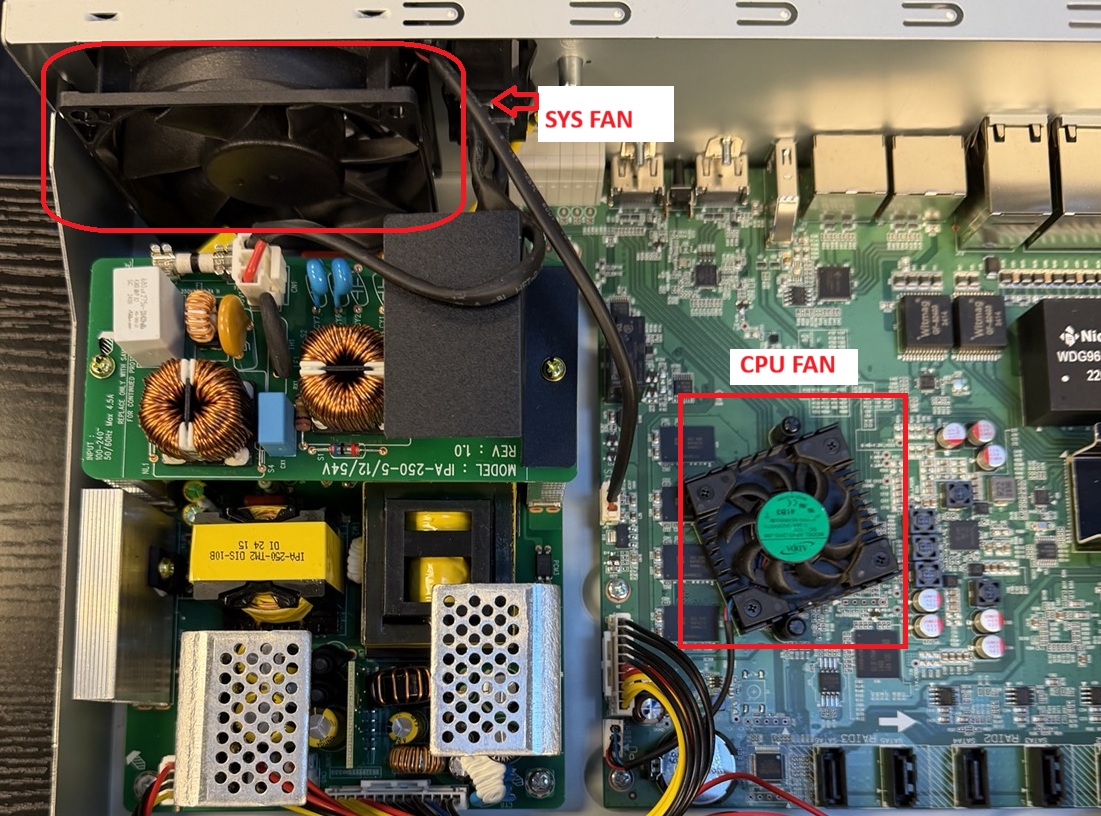

DR-6500 FAN location

DR-6500 FAN.jpg

DR-8500 Series

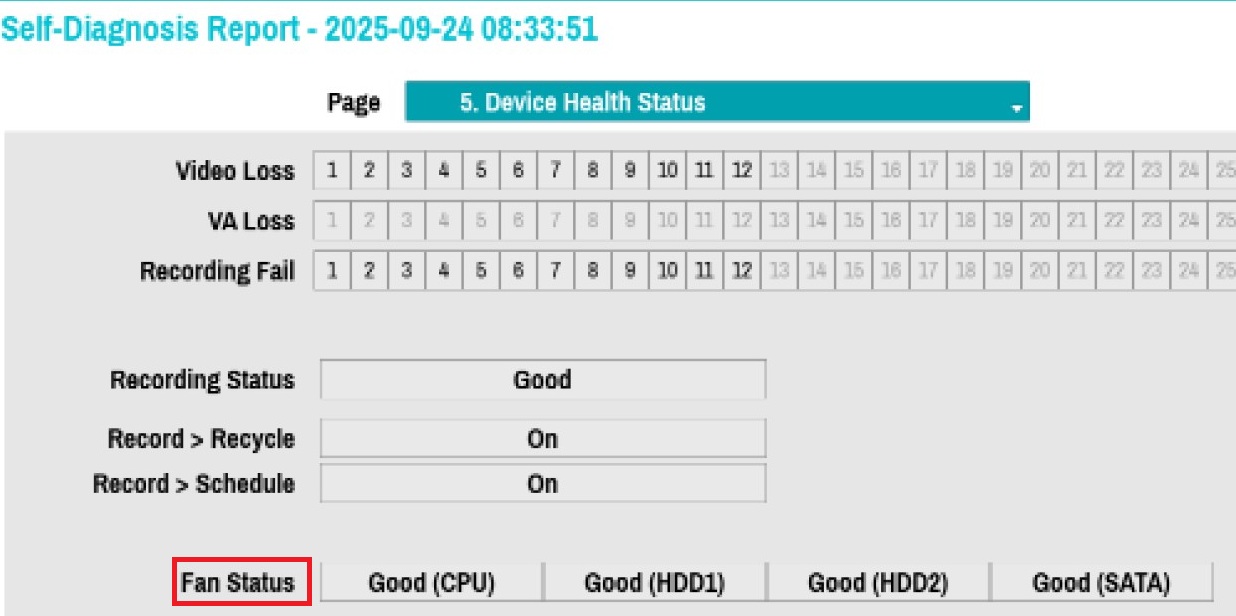

Setup >System> Self-Diagnosis > Run the Self-Diagnosis Report.

dr8500 fan diagnosis.jpg

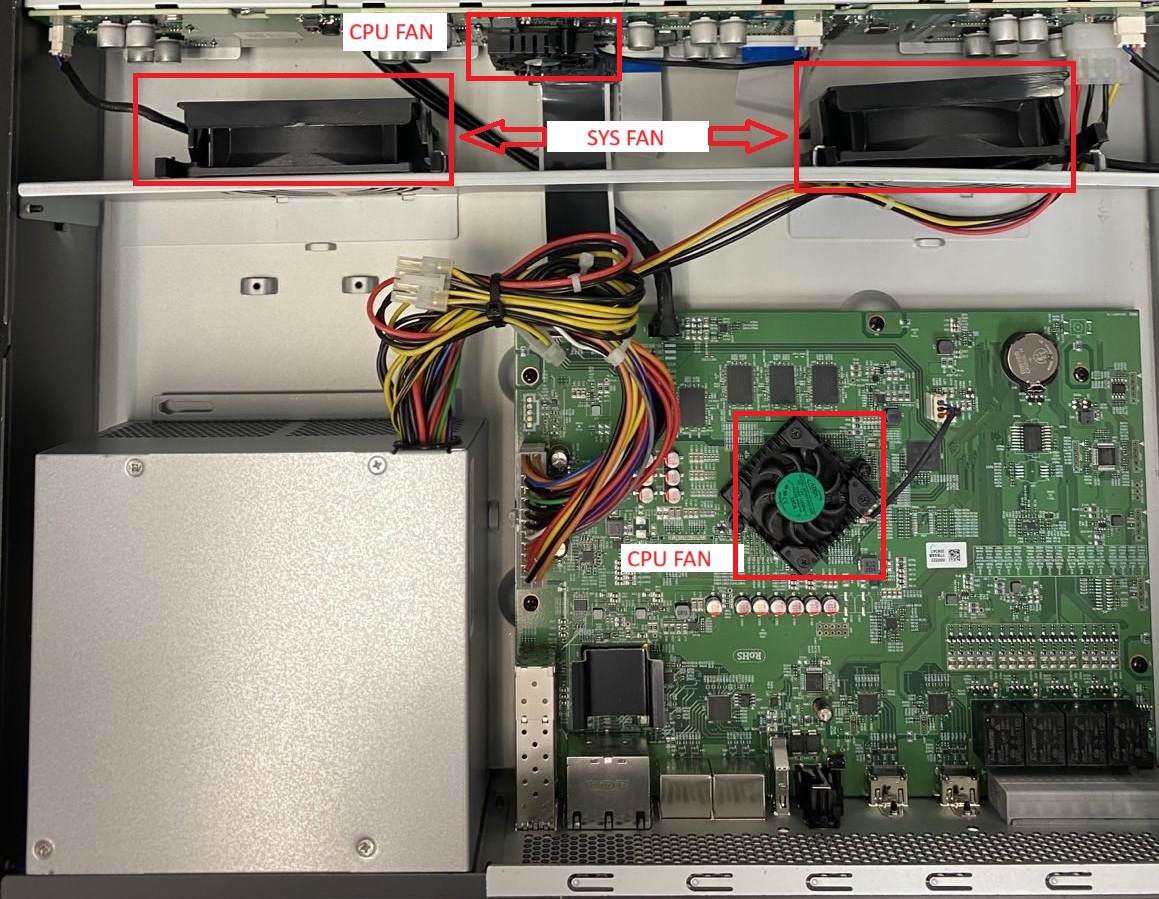

DR-8500 FAN location

IMG_0619 - Copy.jpg
