DR-Series | How to trigger alarm out

Envoirment:

• DR-Series
• DC-D4000/D6000 Series (DirectIP protocol)
• DC-T4000/T6000 Series (DirectIP protocol)

Diagram:

Procedure:

1. Log in to the NVR using an admin account.

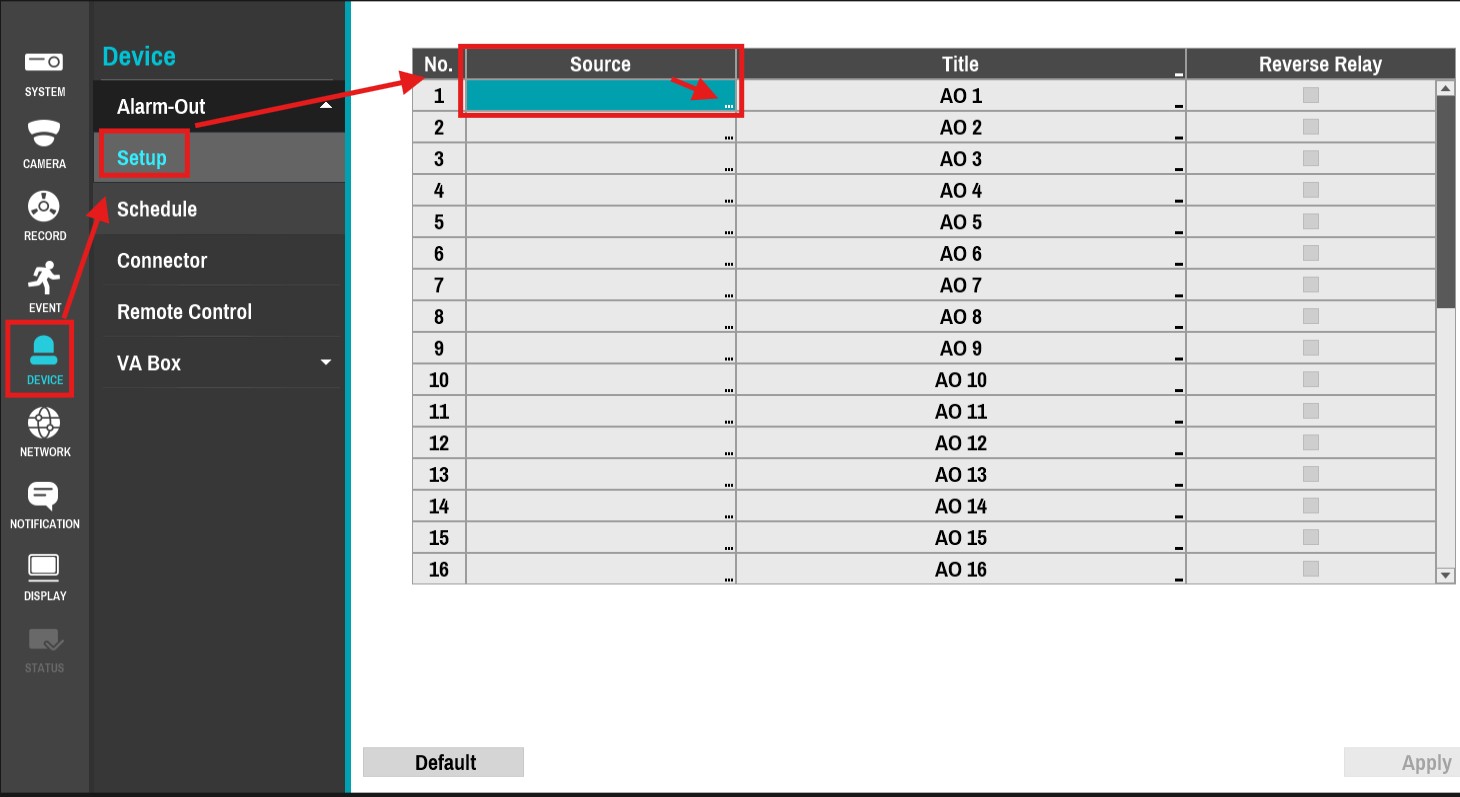

2. Click Setup > DEVICE > Setup > click the 3 dots in the "Source" field.

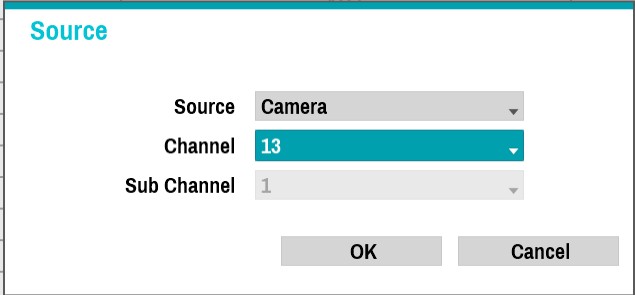

3. Select the camera that will trigger the output. Click "Ok" and "Apply" to save.

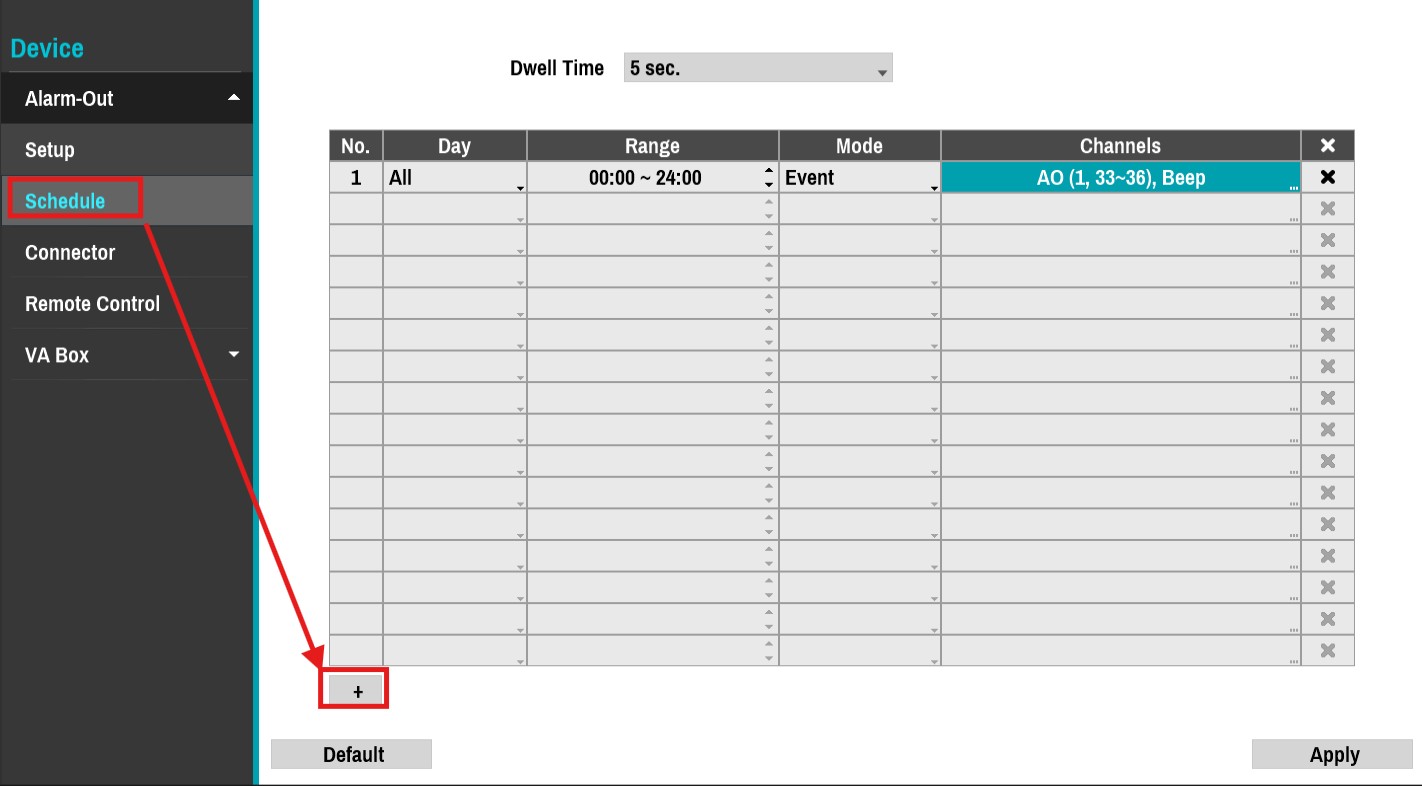

4. Click "Schedule menu," then click the "Plus" to add a schedule.

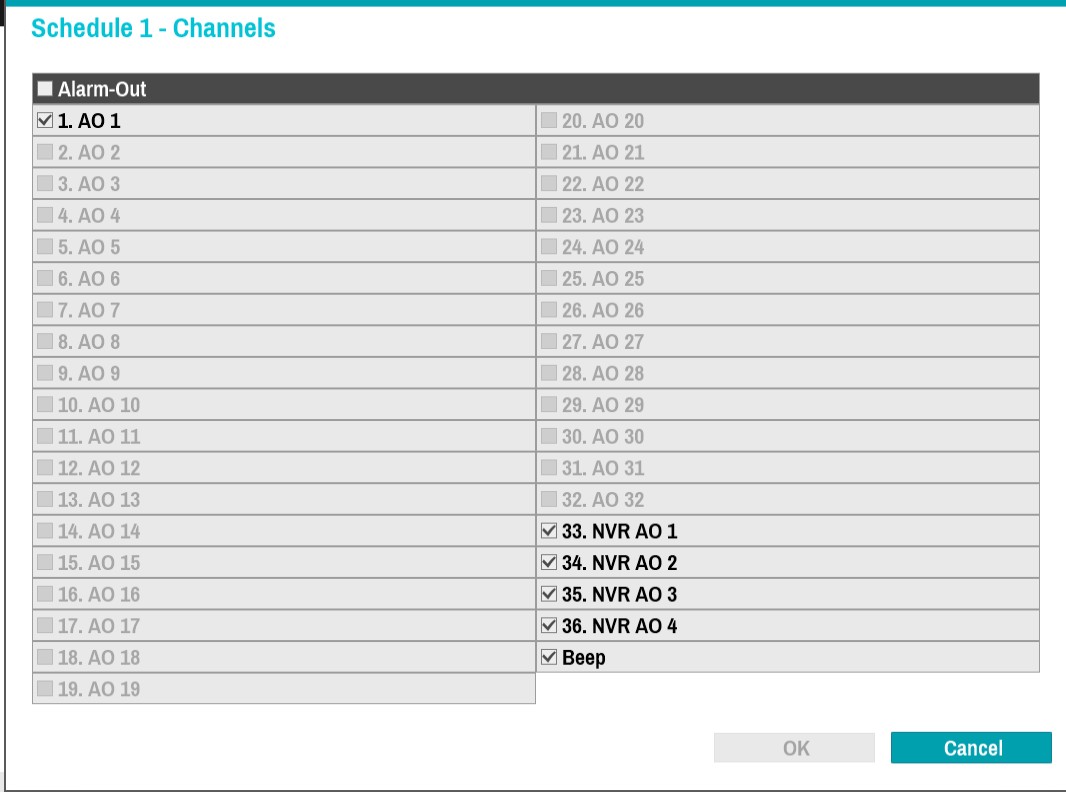

5. Click the "Channel" field and confirm that the required "1. AO 1" is enabled.

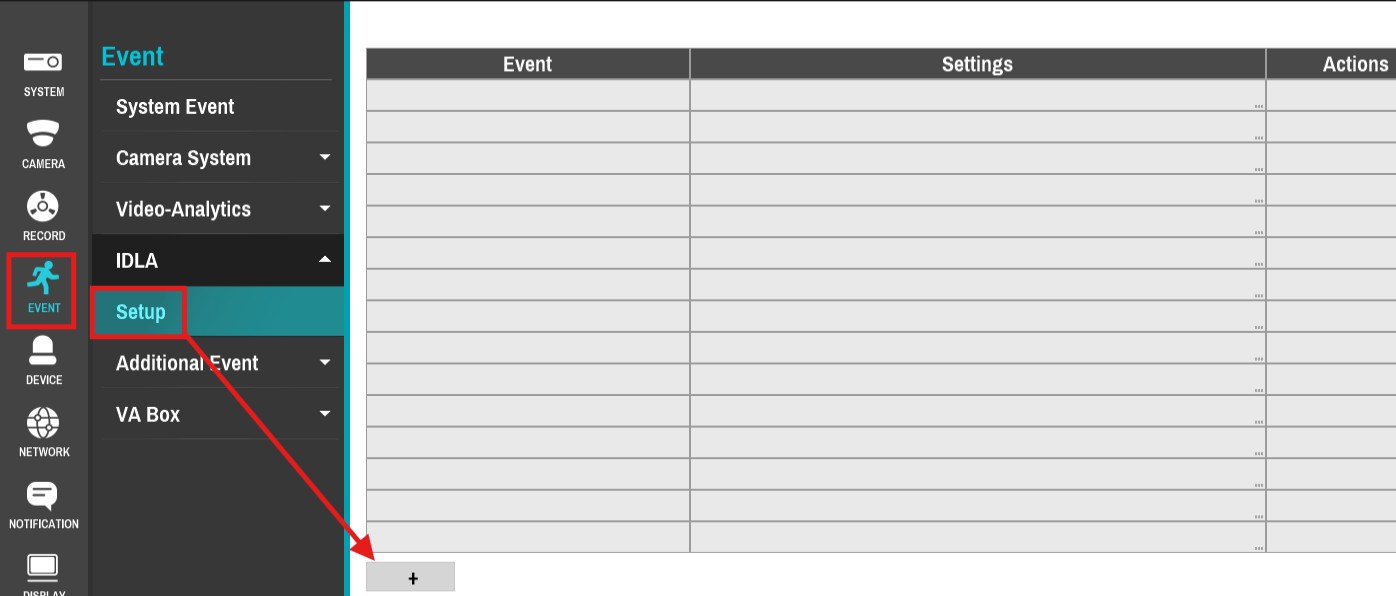

6. Click on the "Event" menu> IDLA>Setup, then the "Plus" icon. shown in the picture below.

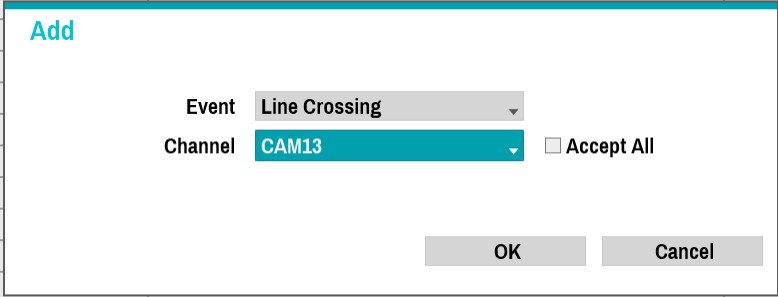

7. Select your "Event" (Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), then select "Channel". Click "Ok"to save. Note: If no channel is available, confirm if the camera supports analytics and was added as DirectIP.

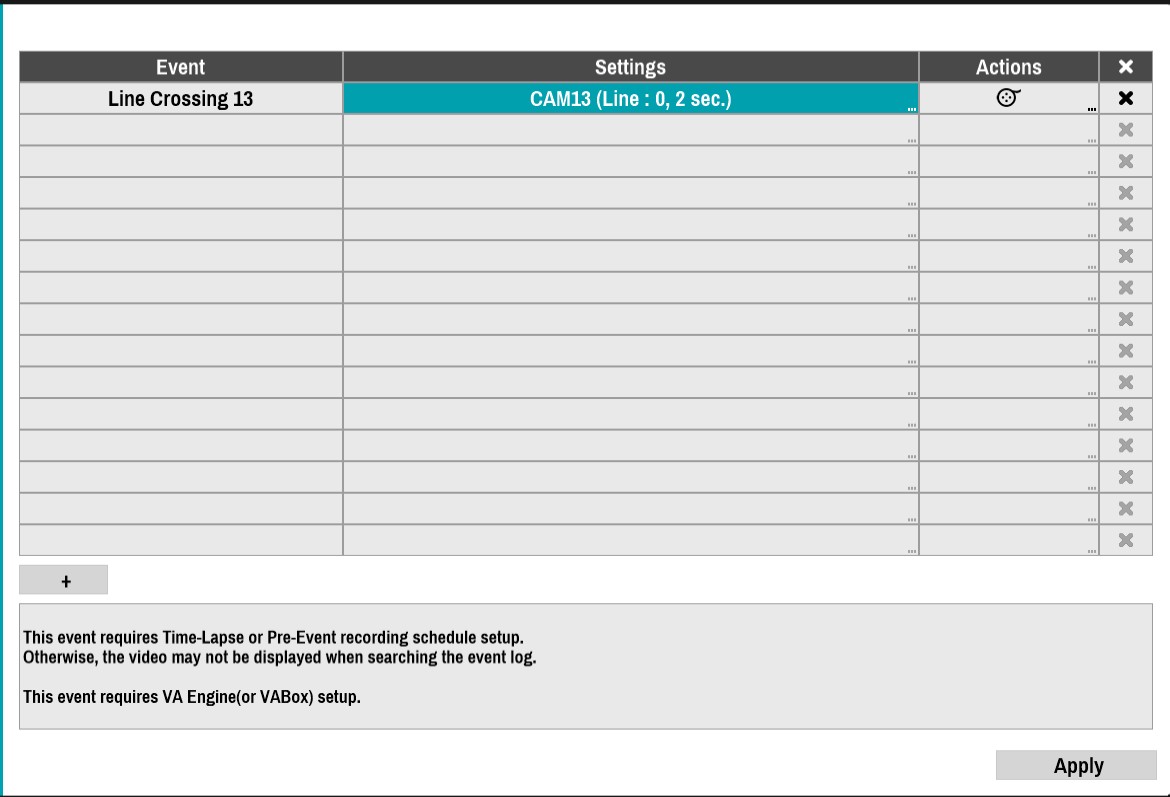

8. Click the camera in the "Settings" field . picture below

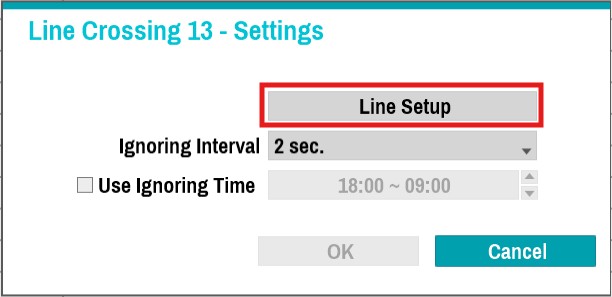

9. Click on the camera in the "Settings" Menu, then click on "Line Setup."

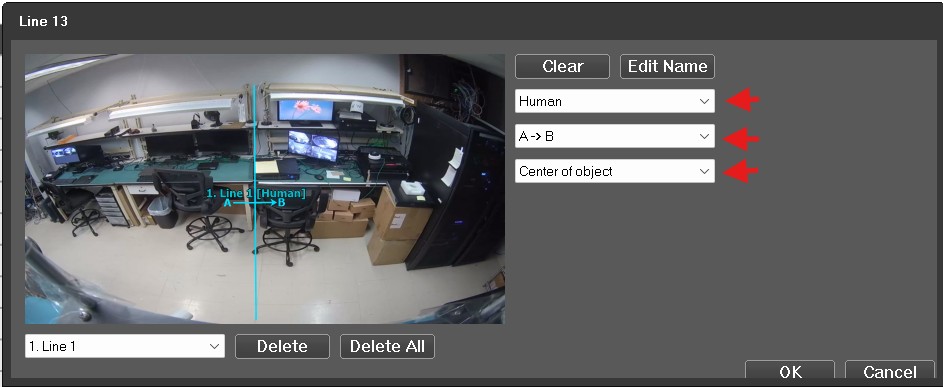

10. Click on the screen and drag downward with your mouse to add a line. Then click "OK" to "Save."
    Note: You can change the object and direction of the trigger if needed.

11. Click "Ok" again to save.

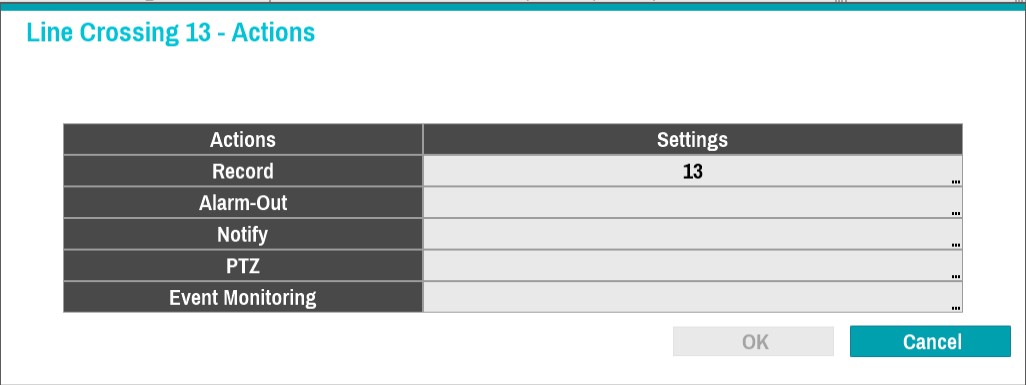

12. Click on the "Actions" menu

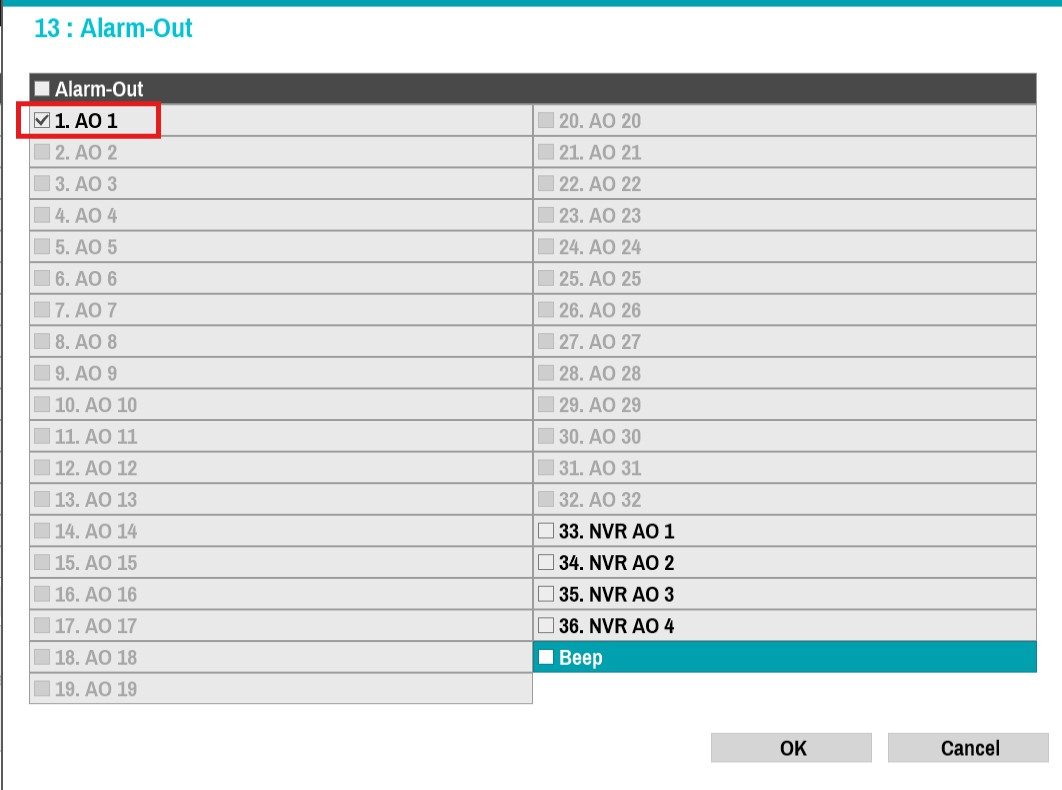

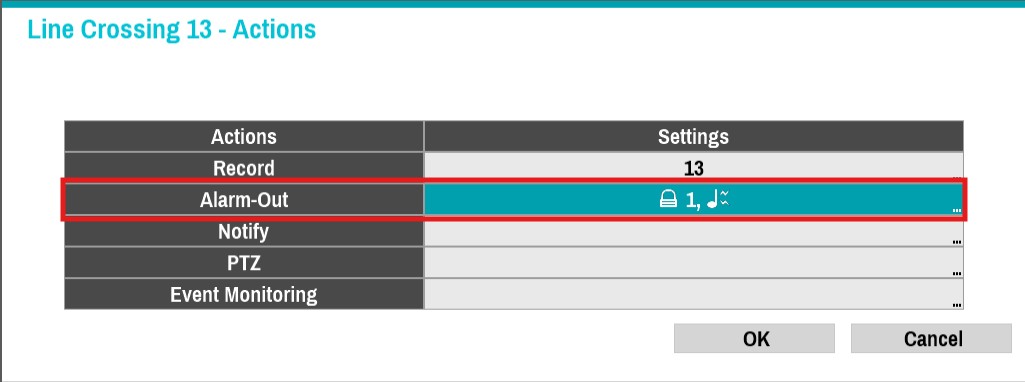

13. Click on the "Alarm-Out"

14. Click "Ok" to save.

15. Click "Apply" to save and exit the menu.
