DC-T18A4WR | Configuring Loitering

Super Admin
13 Aug 2026
302 views

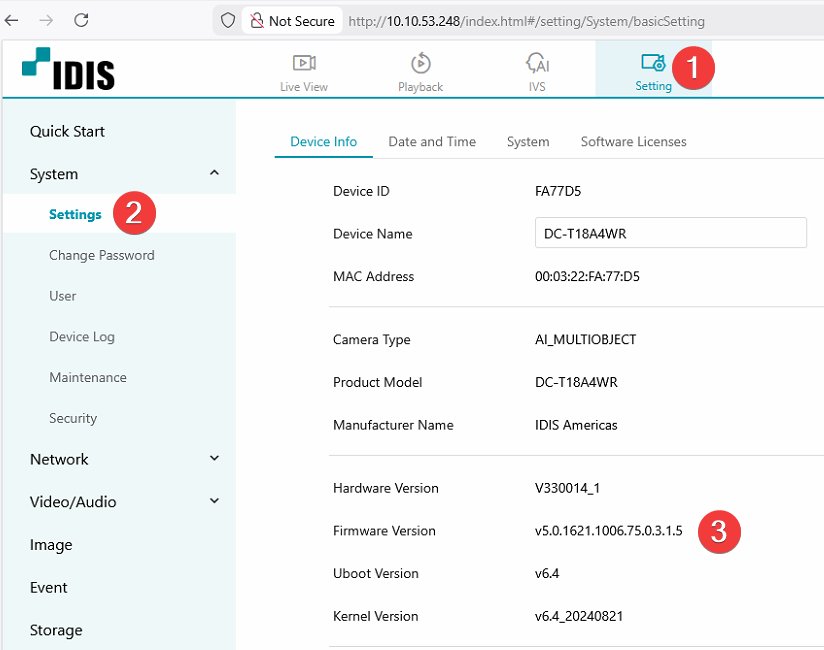

  1. Check the firmware version.

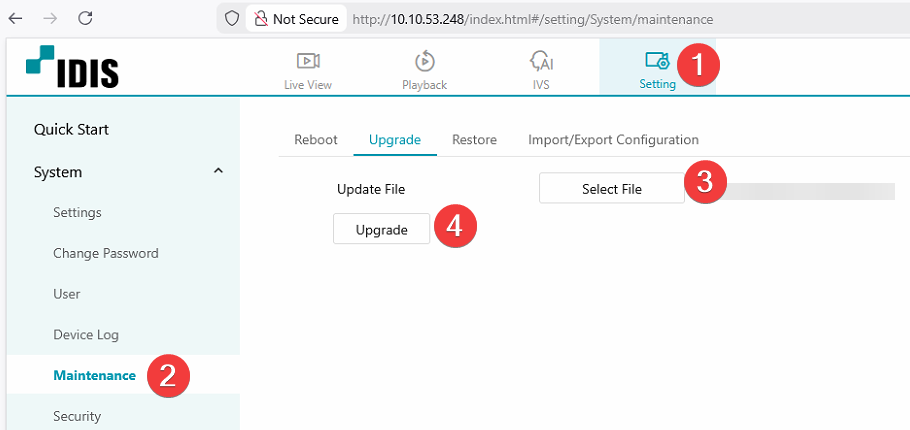

  2. Apply any firmware updated as needed.

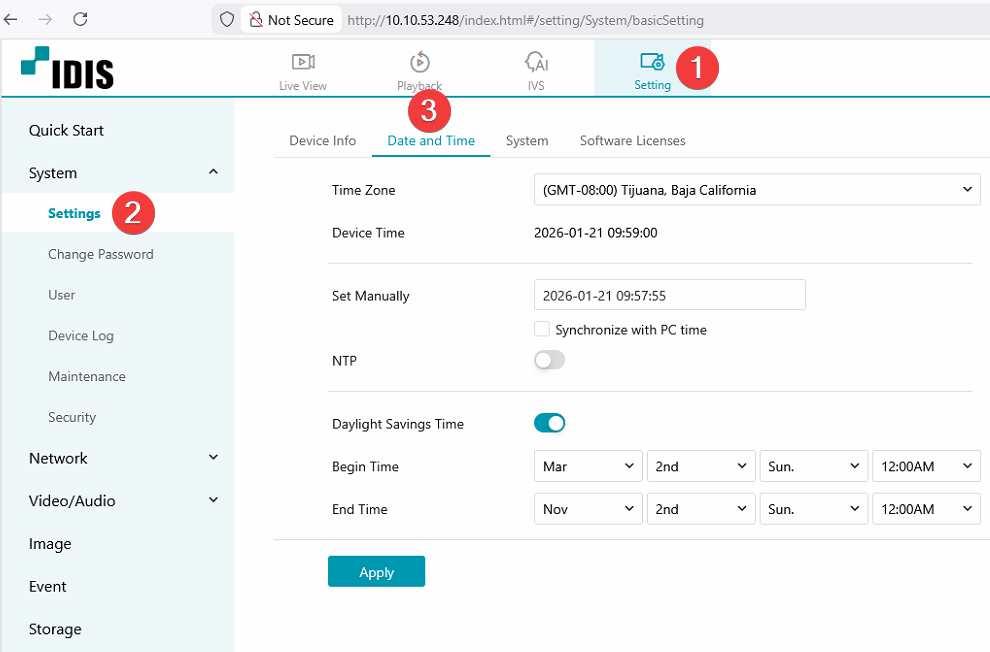

  3. Configure NTP on the camera. Specify an NTP server if one is available.

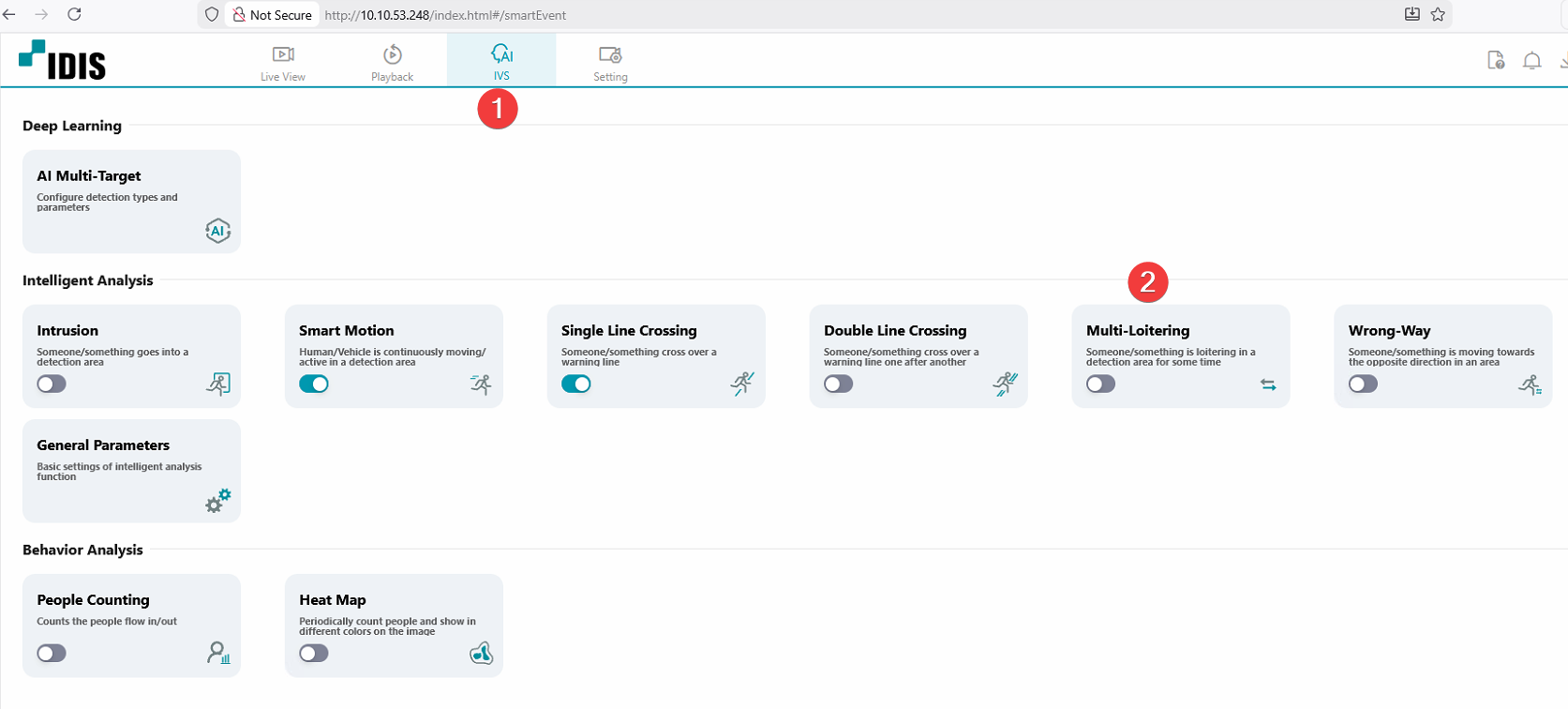

  4. Click IVS > Multi-Loitering.

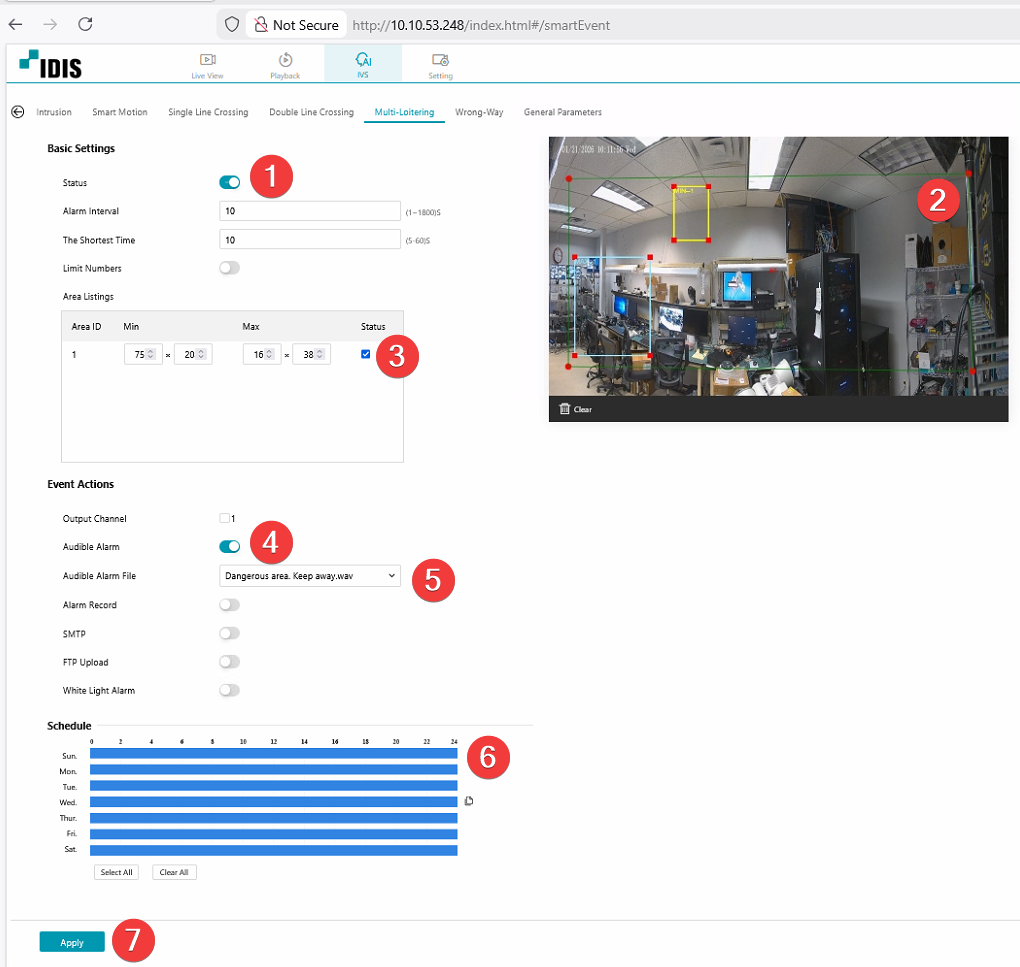

  5. The below is a basic template.
    • Toggle the Status button to enable it.
    • In the camera preview, click and draw a loitering zone indicated by the green box.
    • In the area listings box, click the checkbox under Status to enable it.
    • Adjust the Min and Max Values. The smaller the number, the likelihood of false positives and the higher the Max, the likelihood of missed detection. Use a FOV Calculation and DORI Standards for best detection. We recommend using default settings and adjusting the values by standing at the furthest point and then the closet point to the camera and adjusting the values as needed.
    • Toggle the Audible Alarm to enable it.
    • Select one of the *.wav files from the drop down.
    • Edit the schedule. Blue are the dates and times it is enabled.

    • Click Apply
