CBT2S12IFW | Internal menu option

Super Admin
07 May 2026
1 views

Environment:

  • Analog cameras (with a Joystick).

Procedure:

Function keys
Up Down Left Right SET DN UP Operation description
SET key: It is used to enter OSD menus or select menu items when you press this key in the middle of the multi-function switch.

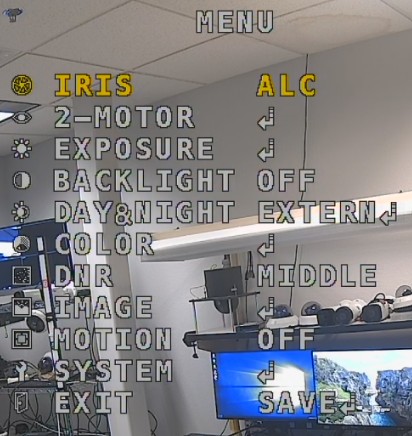

  1. Main Menu
    Main main.jpg

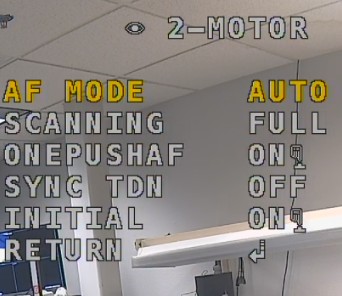

  2. 2-Motor menu
    Note: Hold the joystick focus
    2 motor.jpg

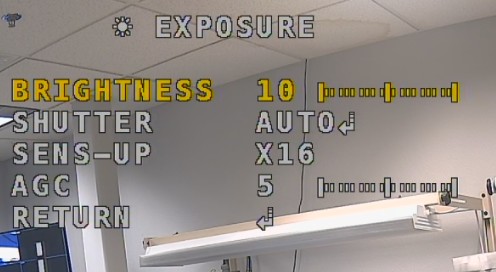

  3. Exposure menu
  4. Backlight ( no sub menu)

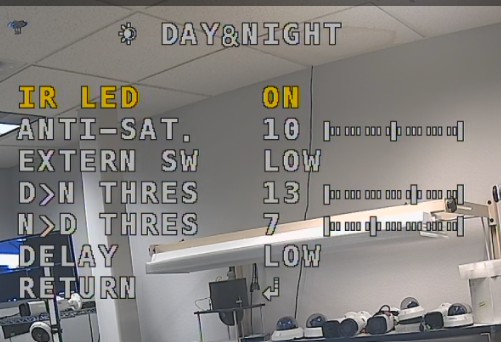

  5. DAY&NIGHT EXTERN
    day & night.jpg

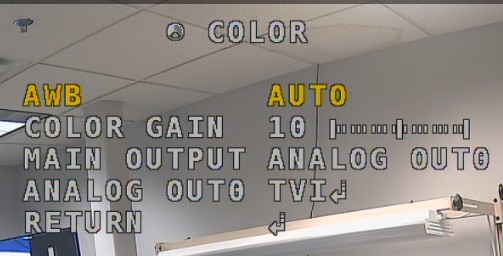

  6. Color menu
  7. DNR (No sub menu)

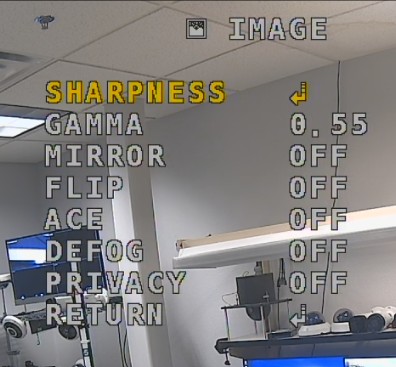

  8. Image menu
  9. Motion Menu (No sub menu)

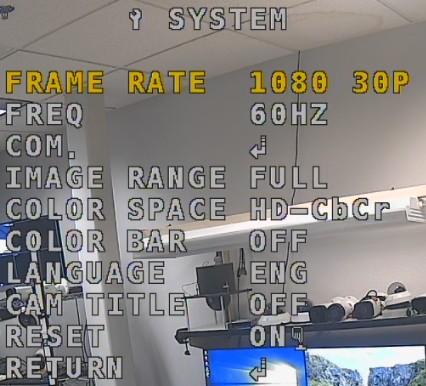

  10. System Menu
