Ring Security Camera Setup Guide, Follow these steps to set up your Ring security camera in the Ring app. Is your security camera Battery-powered? Even if you are planning to connect your camera to a solar power source, we recommend fully charging the battery before getting started with setup.
Follow these steps to set up your Ring security camera in the Ring app.
Pre-Setup: Charge your camera’s battery
Is your security camera Battery-powered? Even if you are planning to connect your camera to a solar power source, we recommend fully charging the battery before getting started with setup.
To charge, slide the battery or batteries out of the battery compartment and use the provided cable (micro-USB) to charge the battery.
If you’re setting up a Plug-In or Wired camera, you can skip to the next step.
Step 1: Download the Ring app
(for iOS devices) or the
(for Android devices).
Alternatively, visit ring.com/app on your mobile device.
Step 2: Create or log in to your Ring account
If this is your first Ring product, you will be asked to set up an account.
To set up an account:
Create Account
.
Learn more about creating a Ring account
Step 3: Setting up your camera
Setting up a hardwired Camera? You’ll need to physically install your camera first, before setting up in the Ring app. Follow the instructions in the app, the user manual, or see Ring’s installation guides for help.
Setup and Scanning the QR code
Set Up a Device
.
Security Cams
.
I’m Ready to Scan
and scan the QR code with your mobile device. A green square will appear when successfully scanned.
Adding your location and choosing a name
Custom
to create one.
Connecting to wifi
Setup button is located under the battery cover. For Stick Up Cam Elite, the setup button is located under the bottom cover.
Setup button is located on the top of the camera.
Tap Join when the Ring app asks to join the Ring wifi network.
Your device should automatically connect to the Ring wifi network.
Having trouble connecting to the Ring wifi network?
Settings
.
Wi-Fi
to access your Wi-Fi settings.
Ring-
or
Ring Setup
(followed by a set of letters and numbers) wifi network.
Setup complete and customization
While updating, you can continue setup in the Ring app to customize your device.
Troubleshooting camera setup
My security camera is not connecting to my wifi network.
our flashing light patterns guide
for more information
I don’t see my wifi network on the list.
My security camera is not going into setup mode.
If you are still having trouble with setup, please contact our Customer Support Team.
.
Ring Device Installation Guides
Scroll through our installation guide library to find the Ring device you wish to install at your home or business. At Ring, we are striving to minimize our carbon footprint and are not printing the user manual for product packaging.
Ring Security Camera Setup Guide
Video Doorbells
Wired Doorbells
(formerly Video Doorbell Pro 2)
(formerly Video Doorbell Pro)
Battery Doorbells
Security Cameras
Floodlight Cams
Spotlight Cam Pro
Spotlight Cam Plus
Spotlight Cam (1st Gen)
Outdoor Cam
Stick Up Cam (3rd Gen) is now Outdoor Cam.
All the great features of your Stick Up Cam (3rd Gen) are still the same, just under a new name. All instructions, guides, and accessories for Ring Stick Up Cam (3rd Gen) will work with Ring Outdoor Cam.
Outdoor Cam Plus
Stick Up Cam Pro
Stick Up Cam Elite
Stick Up Cam (2nd Gen)
Indoor Cameras
Ring Alarm
Ring Alarm Sensors
Other Ring Alarm Components
¹
Ring Smart Lighting
Accessories
.

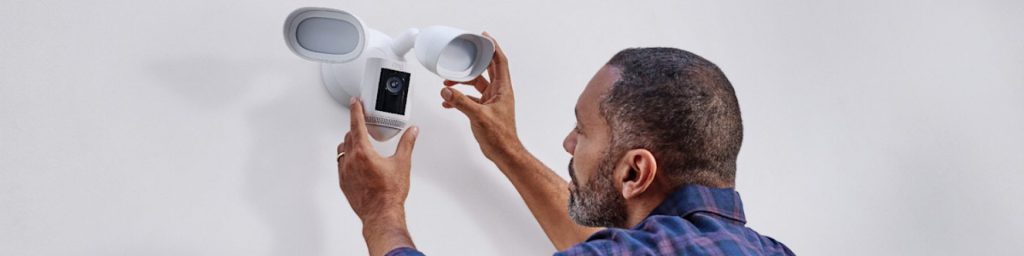

Installing Floodlight Cam Wired Pro
May contain inaccurate subscription information.
Ring subscription prices and features may have changed since the printing of these manuals. Visit Ring.com/plans for current details.
Download/view the manual (US English, French Canadian and Latin American Spanish).
This article will outline the step-by-step process to install your Floodlight Cam Wired Pro. Before you begin installing your Ring Floodlight Cam Wired Pro, make sure that you’re following safety code standards.
WARNING: Electrical shock hazard. Disconnect power to installation area at your circuit breaker or fuse box before beginning installation. Always use caution when handling electrical wiring.
Installation by a qualified electrician may be required in your area. Refer to your local laws and building codes before performing electrical work; permits plus professional installation may be required by law.
Your Floodlight Cam Wired Pro must be installed on a 4“ round UL listed weatherproof electrical box.
Quick start
Make sure the power is turned off at the circuit breaker before beginning installation.
Next:
menu (≡)
on the top left corner of your
Dashboard.
Set Up a Device.
Installing your Floodlight Cam Wired Pro
1. Rotate both the lights outward if you are mounting the Ring Floodlight Cam Wired Pro on an eave or overhang.
2. Rotate one light downward, if you’re mounting to a wall.
Remove your existing floodlight
1. With the power off at the circuit breaker, remove your existing floodlight at the junction box and disconnect the wires.
2. If there is a metal bracket attached to the junction box, remove that as well.
Choose your screws
Select a set of screws that fit your junction box from the bags marked A through F. Save a screw from either bag B or C for one of the following steps.
Attach the metal mounting bracket
Secure the metal mounting bracket with the screws you selected in the previous step.
Install the plastic mounting plate
1. Pull gently from the opening of the plastic plate to free it from the fixture, then feed your power wires through the opening.
2. If you’re installing on a wall, the UP arrow should point up when your wires have been fed through the mounting plate.
3. If you’re installing under an eave, the arrow should point toward the wall.
4. Insert one of the screws from Bag B or C into the center hole, then tighten to secure.
Hang up your Floodlight Cam Wired Pro
Locate the nylon strap on the back of your Floodlight Cam Wired Pro light fixture and loop the buckle at the end over the hook on the mounting plate. Make sure that the buckle and hook are secure before releasing the light fixture.
Connecting the wires
WARNING: If you cannot easily identify the wires coming out of your junction box, have difficulty with them or are uncomfortable in any way, consult a licensed electrician.
Mount the fixture
Restore the power at the breaker
Now that your floodlight Cam Wired Pro is installed, you can turn the power back on at the breaker. The lamps on your Floodlight Cam Wired Pro will flash once it’s powered on.
Complete setup in the Ring app
Once your Floodlight Cam Wired Pro is installed, follow the set up instructions in the Ring app. You can find the setup instructions here.
.
Installing Spotlight Cam Plus, Solar
Learn how to install Spotlight Cam Plus for Solar use by following these steps.
Ring app.
Menu
(≡)
, then select
Set Up a Device
.
Ring app
.
Hardware included:
Tools needed:
Note: Remove protective film from device. This ensures your device works properly.
2. Remove the battery.
Twist the battery compartment counterclockwise to unlock and remove the cover.
Then, remove the battery and discard the orange battery insulator.
3. Charge the battery.
Plug it into a power source using the provided USB cable. Once the battery’s fully charged, only one light on top will glow green.
4. Re-insert the battery.
Slide the battery back into the camera until it clicks into place.
Twist the battery compartment cover clockwise to lock it and tighten the security screw.
5. Choose a location with the view you want.
Your camera can be mounted on an outdoor wall, eave, or overhang. As a reminder when installing, please do not remove the rubber seal from the base as this could cause potential water damage.
6. Optimize motion detection.
Mount the camera about 3 feet (1 meter) from the middle of the entry point, and about 10 feet (3 meters) above the ground.
Your camera comes ready to mount, with the ball joint pointing down. No adjustments are needed before installation.
Remove the battery compartment cover by twisting it counterclockwise and insert the ball joint plate with the ball joint pointing up.
7. Remove the mounting plate.
Slide it down to remove it from the camera mount.
8. Install the mounting plate.
Warning: Only use the included mounting screws when securing the mounting plate, and do NOT drill into your home’s electrical wiring.
For wall installation, the UP arrow should point up. For an eave or overhang, the arrow should point toward the area you want to monitor for motion.
If installing on a wood surface, screw the plate directly into the wall.
If installing on a masonry surface, mark four screw holes using the plate as a guide.
Drill pilot holes using a 1/4” drill bit. Insert the included wall anchors, then drive the four mounting screws through the mounting plate into the wall anchors.
9. Attach the camera mount.
Slide it onto the mounting plate.
Then, tighten the security screw.
10. Attach your camera to the camera mount.
Loosen the metal collar on the bracket using a Phillips-head screwdriver (not included).
Push the ball joint into the socket until it snaps into place.
11. Adjust the camera angle.
Rotate the camera to focus on the area of your choice. Look at Live View in the Ring app to make sure it’s positioned at your desired angle.
12. Tighten the security screw.
Then, tighten the screw on the metal collar to secure the camera position.
Install your Solar Panel
When done installing your Spotlight Cam Plus, Solar, install the Solar Panel with these steps.
1. Choose an install location with the most direct sunlight.
If you are in the Northern Hemisphere, direct your Solar Panel towards the south. If you are in the Southern Hemisphere, direct your Solar Panel towards the north.
Make sure there is nothing blocking sunlight from your Solar Panel.
Hardware included:
Tools needed:
2. Screw the bracket to the wall.
If mounting to brick, concrete or stucco, use wall anchors and 6mm drill.
3. Slide the Solar Panel onto the bracket until it clicks into place.
4. Loosen the adjustment nut and adjust the positioning as required.
5. Tighten the adjustment nut when positioned.
We recommend that the Solar Panel is at a 45 degree angle facing the sun.
Wrap any spare cable round the cable holder, and clip the cable into one of the cable stops.
6. Connect your Solar Panel to your Spotlight Cam Plus, using the USB-C cable.
7. Use the cable clips to secure the cable in place.
