ZK-F22 configuration with ZK-SRB
07 May 2026
4 views
The Access Control terminals with the same menu type as the ZK-F22 can be connected to the ZK-SRB anti tamper controller.

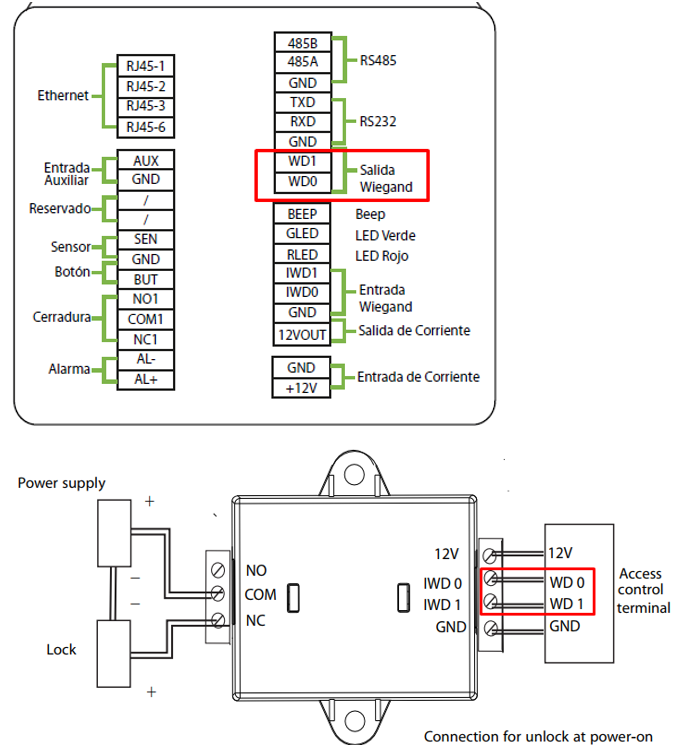

The connection of the equipment must be powered, and the output wires Wiegand D0 and Wiegand D1 must be wired from the ZK-F22 to the ZK-SRB:

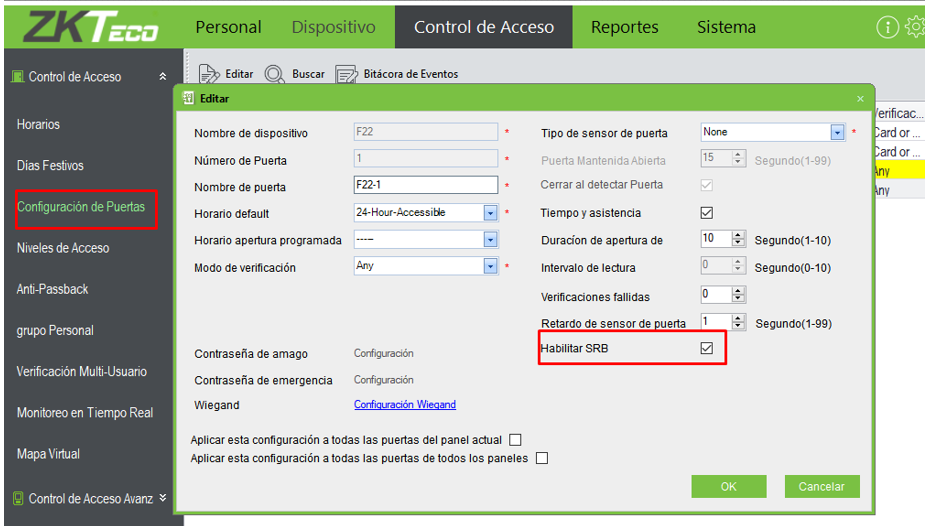

Once connected, the following option must be activated from the ZkAccess3.5 software:

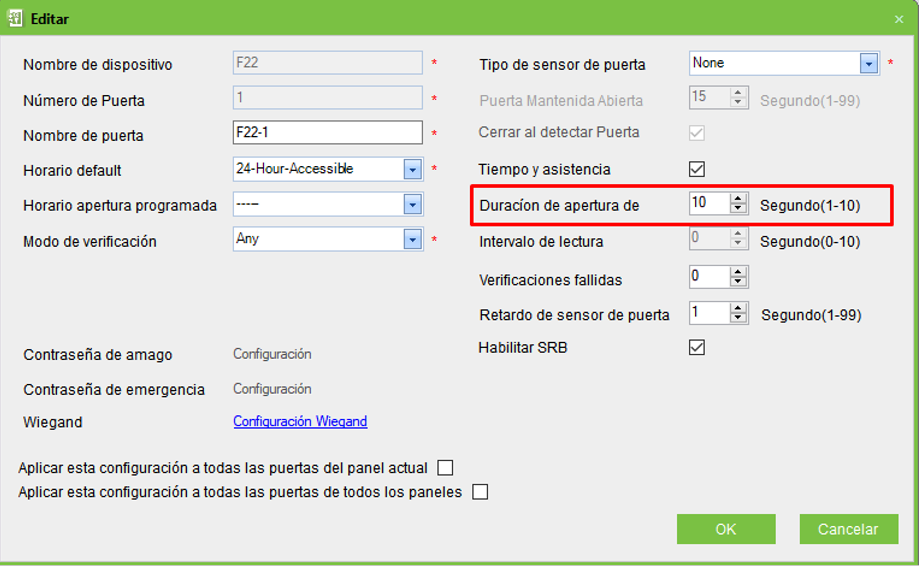

The opening time of the ZK-SRB is the same as the relay of the equipment, which we can configure in this section:
