X-Security Autotracking Camera Configuration

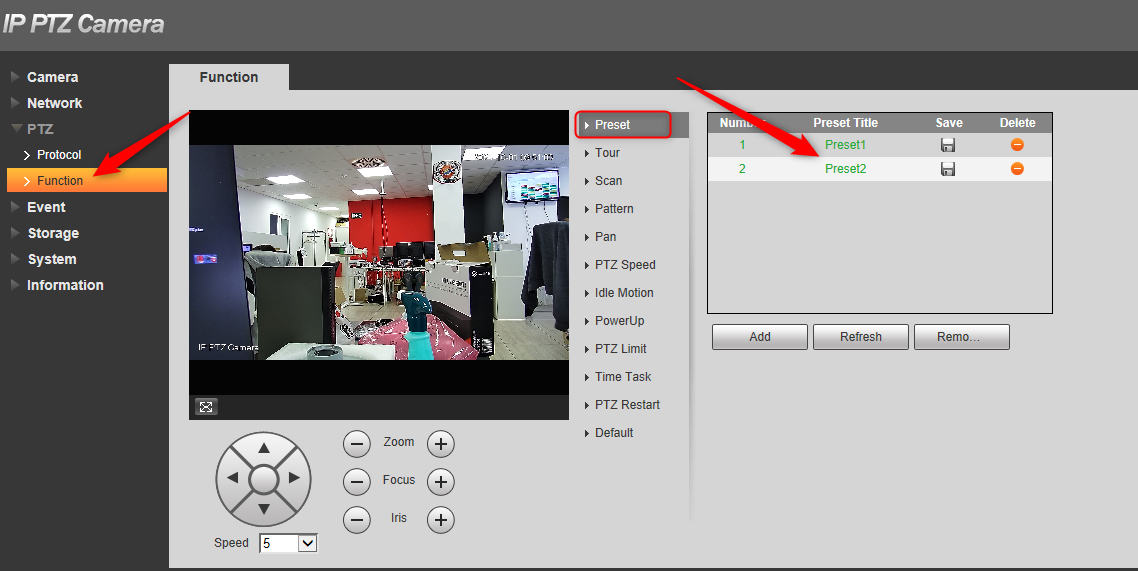

To configure the Autotracking function, the first thing to do is to set presets in the camera:

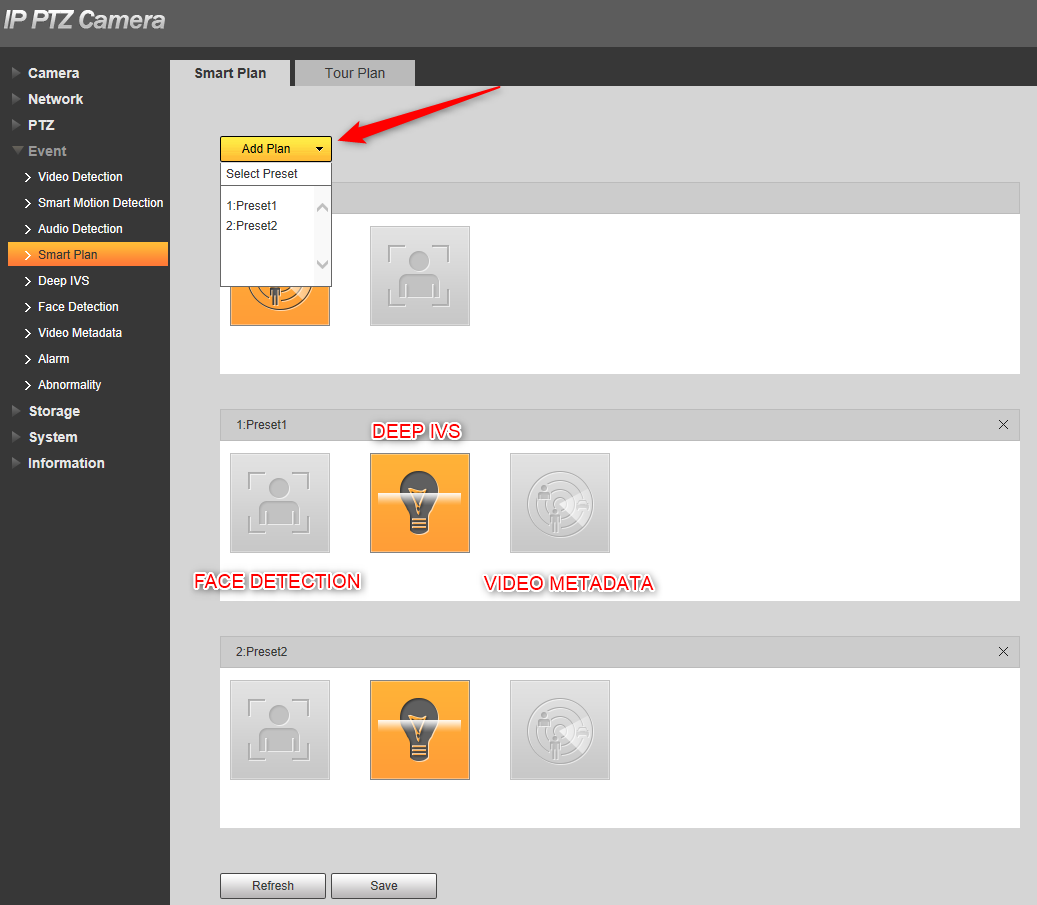

Then the Smart Plan will be activated on the created presets:

• Face detection: If face detection is going to be performed on that preset
• Deep IVS: If you are going to perform Intrusion events, line crossing, etc. and use the Autotracking function

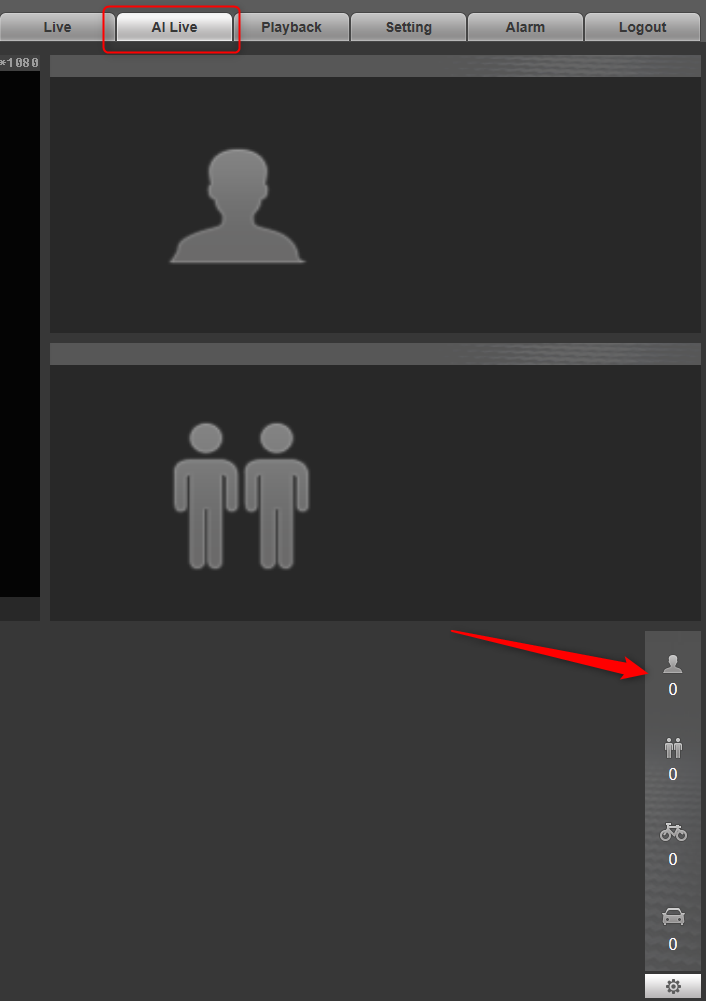

• Video Metadata: So that in the AI Live section the information detected by the camera of people, faces... appears.

In this case we are going to configure a line crossing so that when a human or vehicle is detected, the Autotracking will be executed

This configuration can be made for both presets 1 and 2 established previously and, whenever the camera is in any of these two presets, it will activate this line crossing event and the autotracking; which allows to have a tour running on these positions and to execute the rules
