UPS-SMNP-KPM220 Configuration for UPS Devices
07 May 2026
2 views
The network card for the UPS devices comes with the following default parameters (also check the manual UPS-SMNP-KPM220 Manual)
- Default IP: 192.168.137.100
- Username: admin
- Password: admin
The card allows sending emails for different failures or statuses that occur in the device.

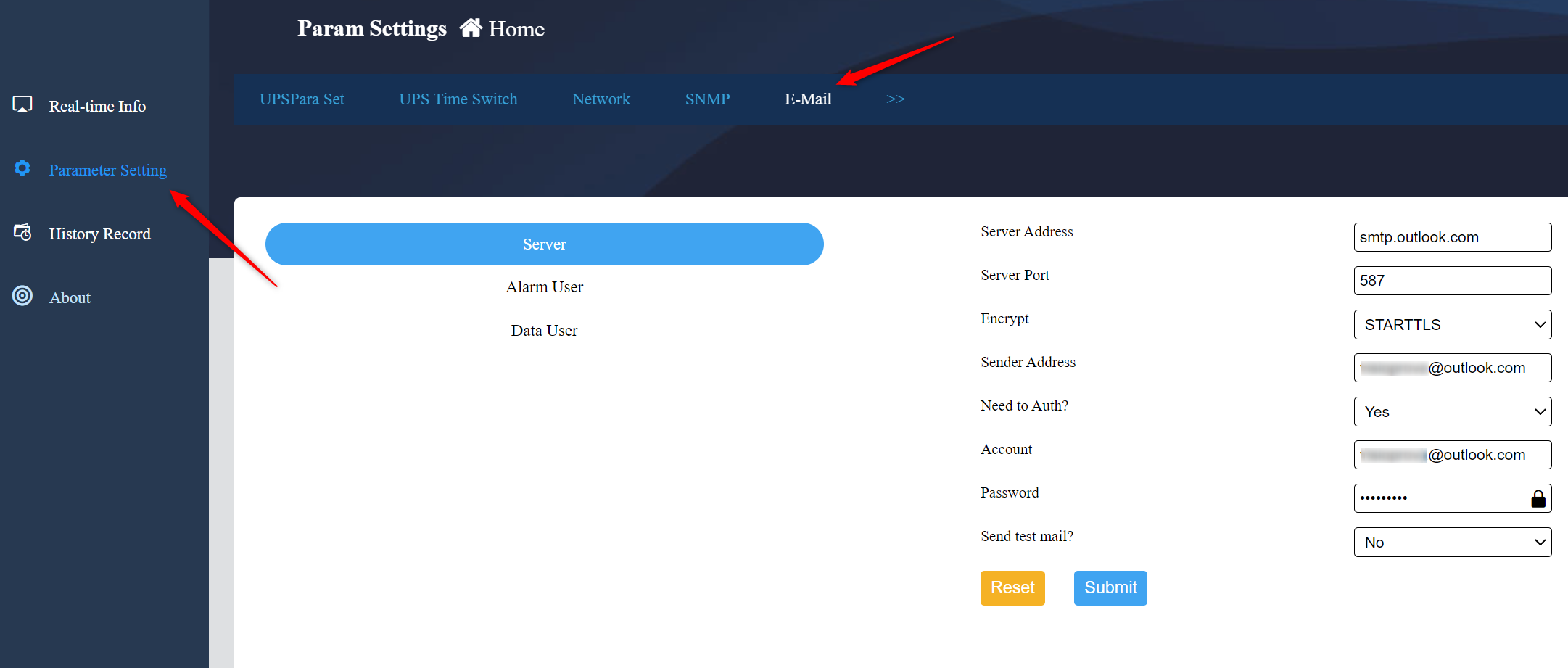

The first step is to configure the email that will send the messages; it is recommended to use Outlook How to configure Outlook for sending emails on recorders:
To check if it is working, specify "Send test email" as "Yes" and, when saving, it should send the test

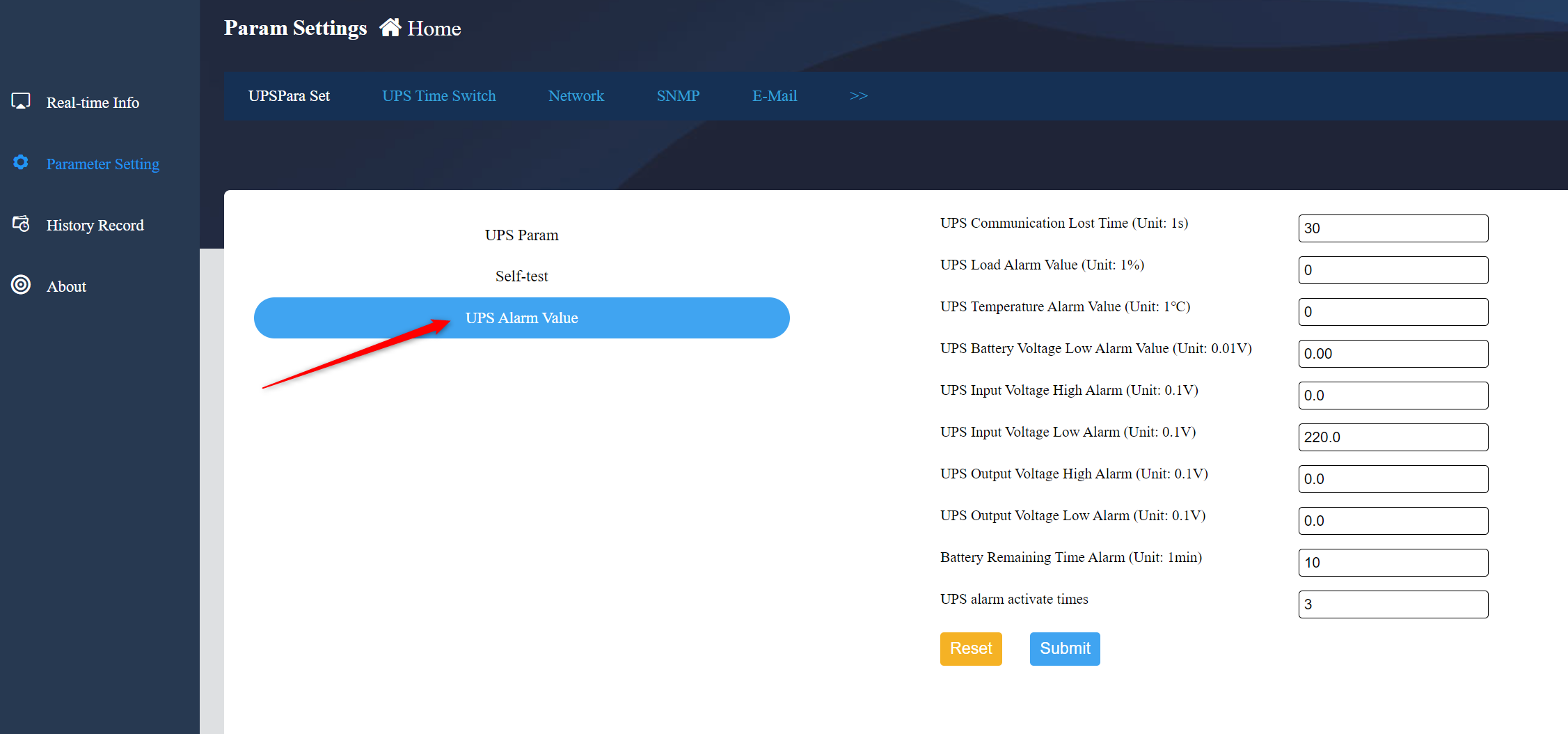

Once the email is working, you can specify the different values for which the UPS can send a warning email:
