The default username and password for the LILIN View Manager software are:

Username: admin
Password: <Leave Blank>

This guide assumes that the LILIN Client software has already been installed on your computer and the icon is present on the desktop.

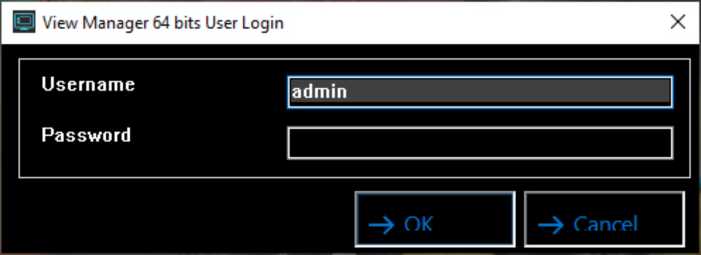

1) Click on the Client Software icon on the desktop and a login box will appear.

The details to enter the software are:

Username: admin

Password: (Leave Blank- there is no password)

Click ‘OK’ to enter the software.

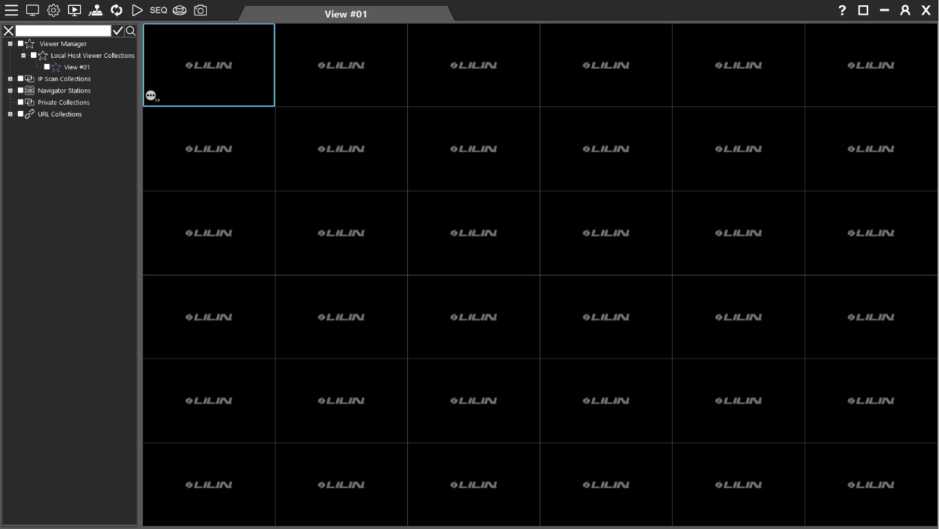

2) The software will load to its main screen.

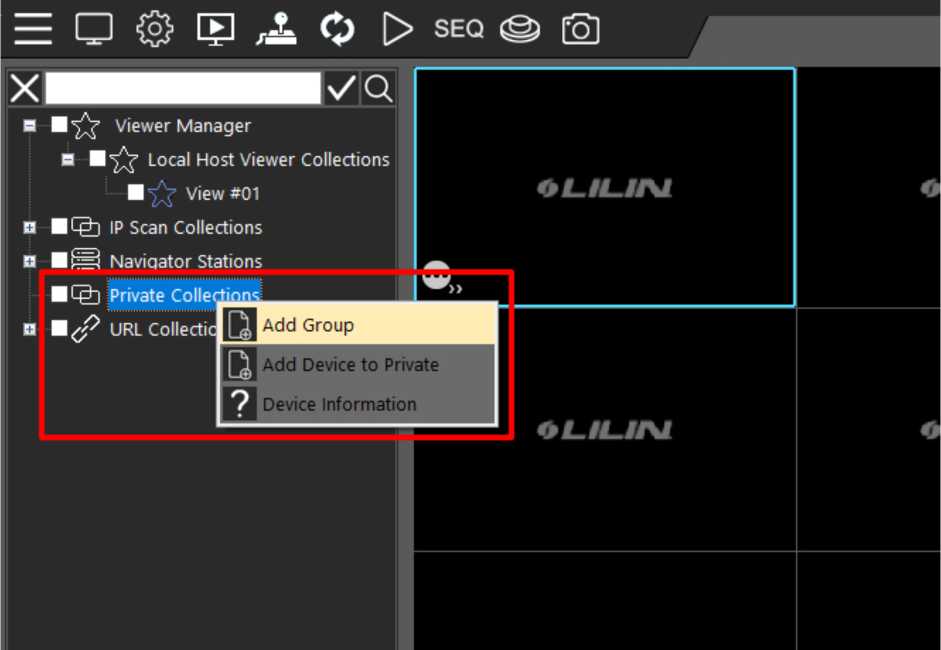

1. To add a device to the client, right click on ‘Private Collections’ in the left menu and a mini menu will appear, select ‘Add Group’.

1. A new window will appear, asking you to name the group. You can name this whatever you want.

1. This new group will now appear under the ‘Private Collections’ menu.

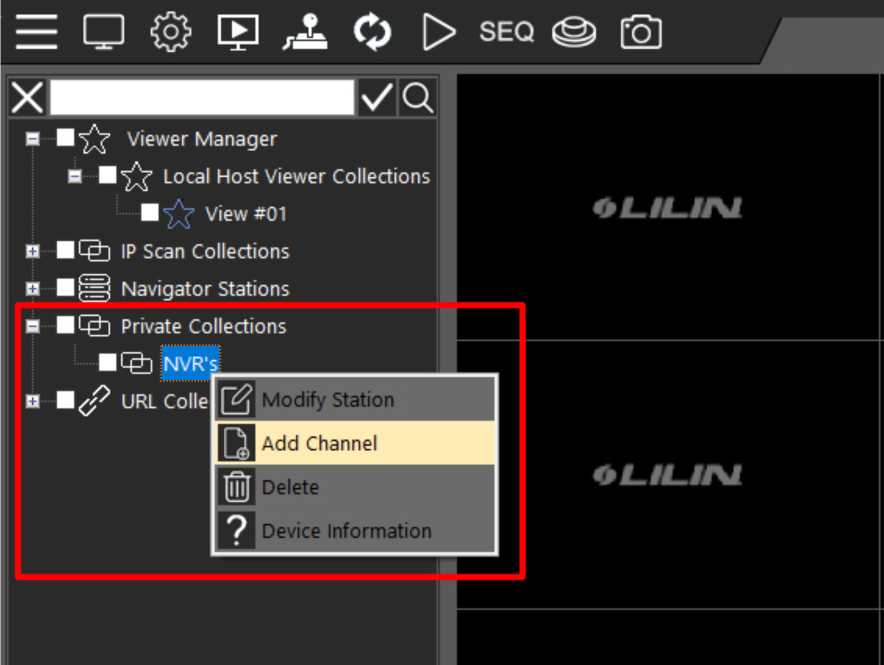

To add a device to this group, right click on the group name and select ‘Add Channel’.

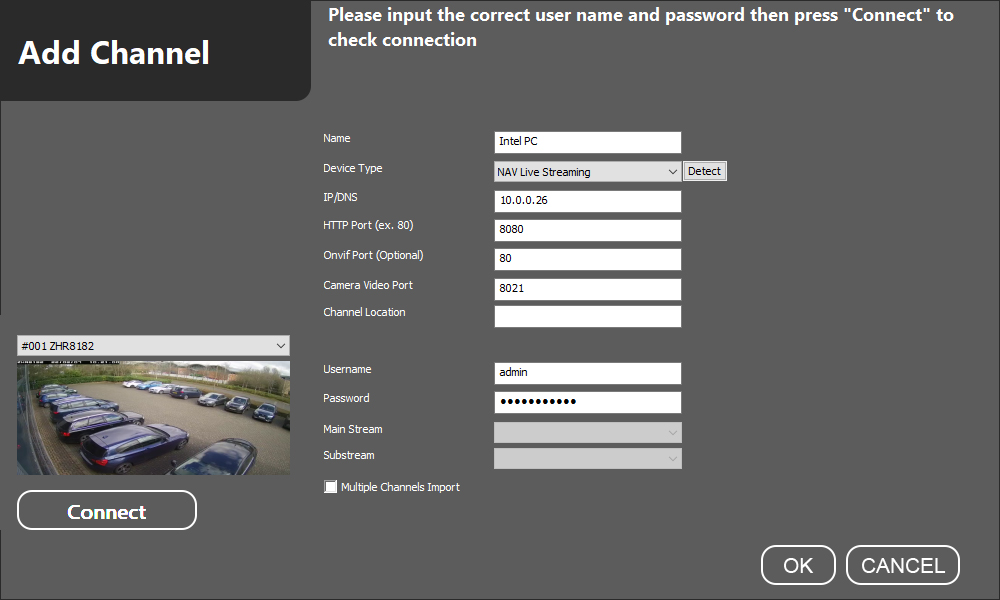

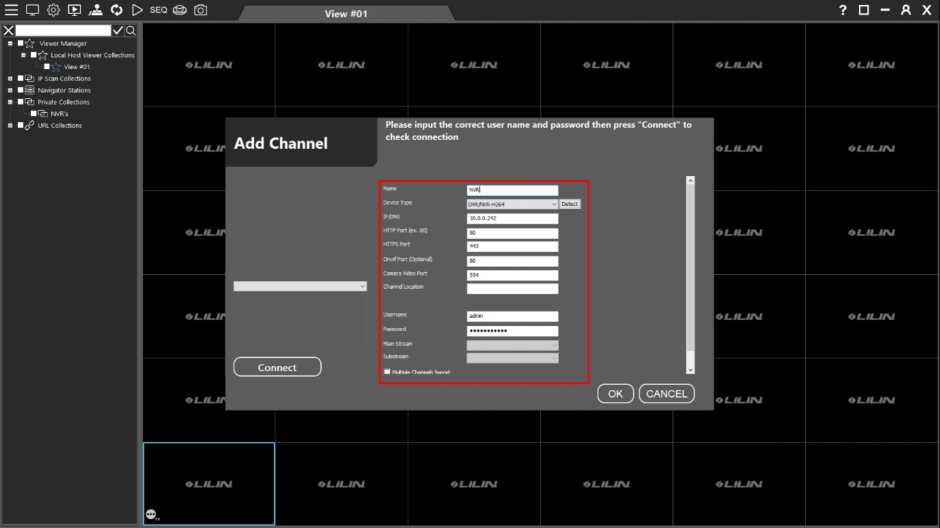

1. A new window will appear. Here you will enter the details of the device you wish to add to the Client software. This can be an NVR, NAV server or a standalone camera.

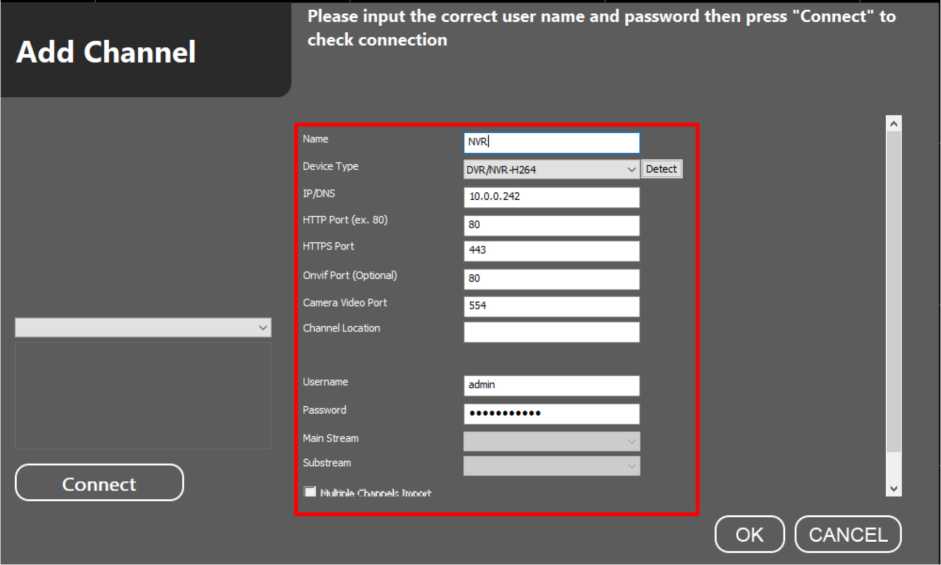

1. In this new window please input the device details, select the correct device type, and add the correct username and password for this device.

1. Click ‘Connect’ on the left-hand side to check the connection. If all of the device details have been entered correctly, the client will now connect to the device and show a preview of the first camera just above the connect button.

554

admin

DVR/NVR-H264

v Detect

Add Channel

Please input the correct user name and passvvord then press “Connect” to check connection

( OK )(CANCEL

Connect

Name

Device Type

IP/DNS

HTTP Port (ex. 80)

HTTPS Port

Onvif Port (Optional)

Camera Video Port

Channel Location

Username

Passvvord

Main Stream

Substream

M Multide Channels Imoort

To import multiple cameras from a device (NVR, DHD, NAV) make sure the ‘Multi-Channel Import’ box is ticket at the bottom of the screen. This will open a new window asking you to select which channels you want to include on the import.

It is recommended that you tick the ‘Select All’ box.

Add Channel

Substream

Connect

a Multiole Channels ImDort

CANCEL

Please input the correct user name and password then press “Connect” to check connection

Select Channel

Select Channel

Channel Name

#002CAM02

#003 CAM03

#004CAM04

#OO5CAMO5

#006 CAM06

#007CAM07

#008 CAM08

#009 CAM09

»010 CAM 10

Cancel

Select Ali / Select None #001CAM01

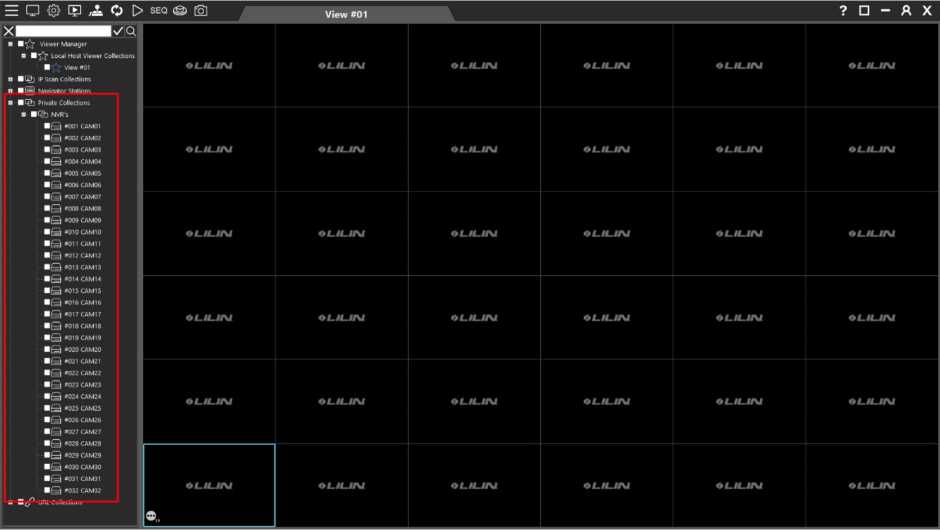

1. When you are happy with your selection, click ‘OK’ and your new devices should appear in your group under the ‘Private Collections’ menu that you created in step 4.

If you do not see devices appear, try clicking on a different option on the left side menu, which will refresh the tab.

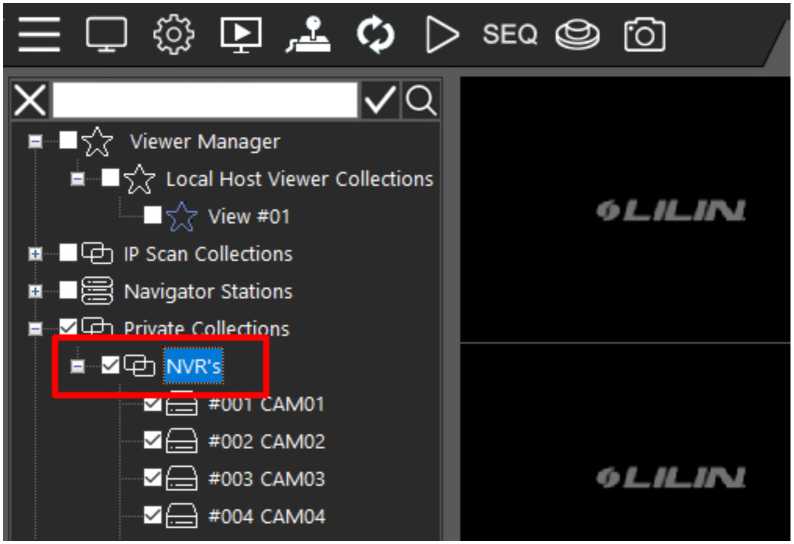

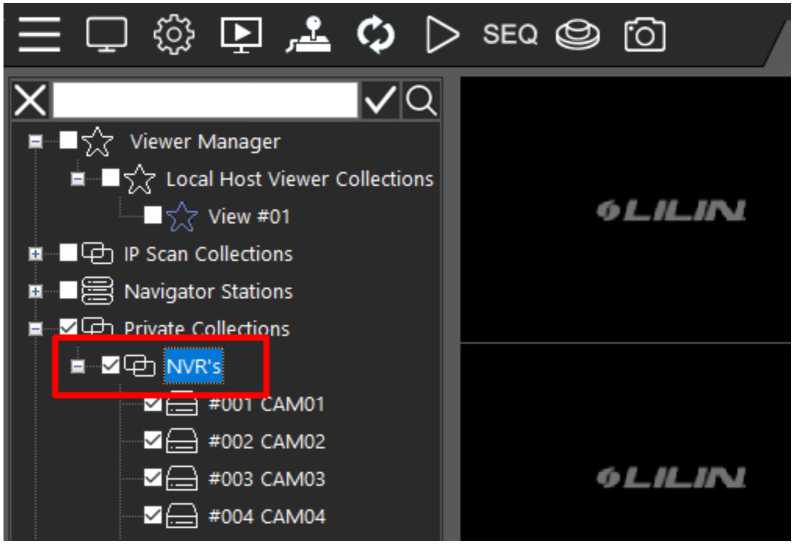

1. The next stage is populating the view so that the cameras are visible. To do this, either tick individual devices, or to select all of the cameras tick the group name.

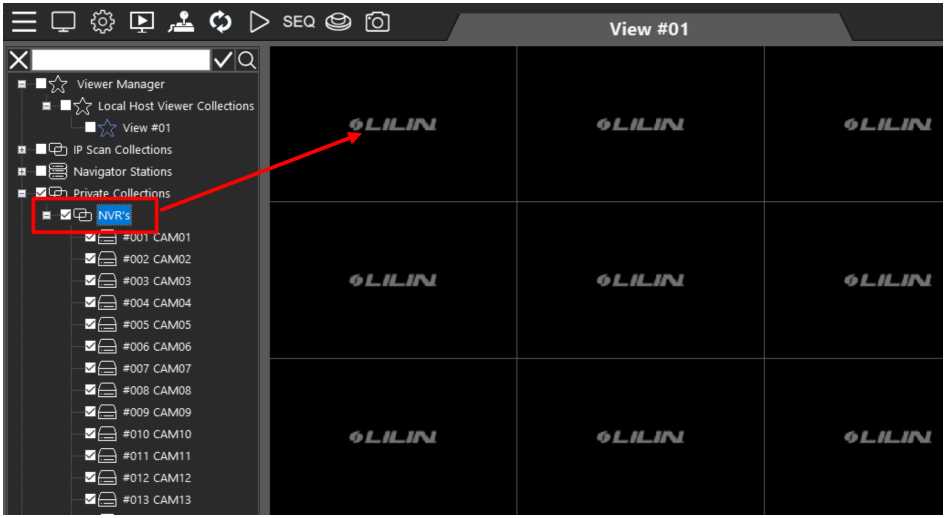

1. Next, left click and drag the highlighted group (or camera) to the view window you would like the Client to start to add the device channels from. If you want to start from Channel 1, drag to the first box, if you would like to start from Channel 4, start from the fourth box etc.

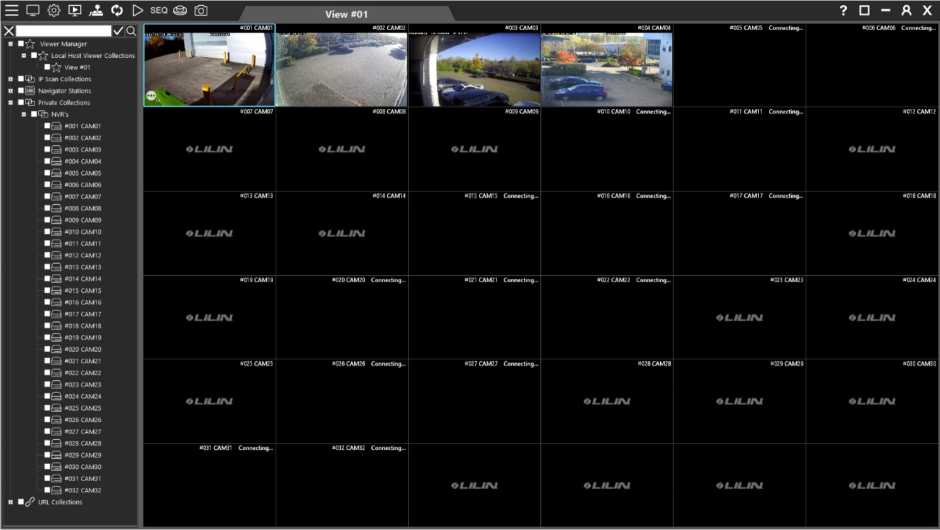

12) Your camera views should now appear in the windows.

LILIN Client

Creating and Editing Views

Create a New View:

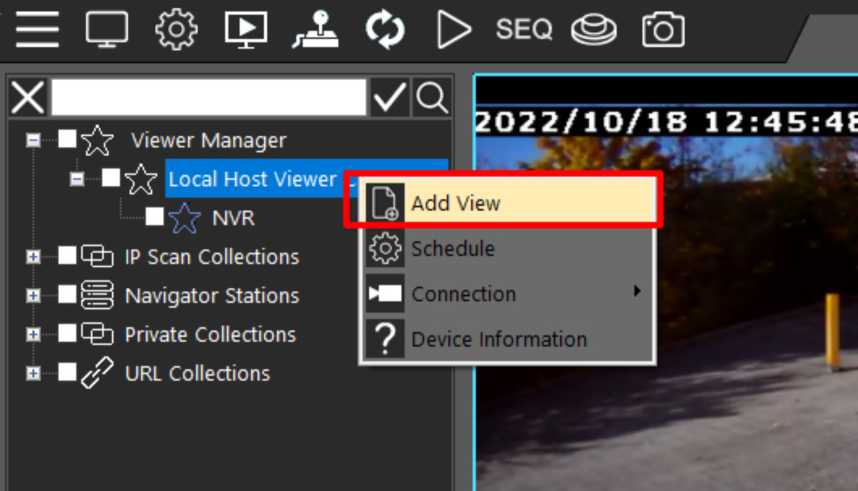

1. To create a new view, in the upper left-hand side menu right click on ‘Local Host Viewer Collections’ and select ‘Add View’ from the mini menu that appears.

1. A new window will appear. Enter a name for this view and select your chosen channel layout from the options that appear in the dropdown menu. These range from 1×1 (1 camera -full screen) to 12 x 12 (144 cameras).

Add View

Ali Cameras

6×6

( OK ) (CANCEL)

1. Click on ‘OK’ when you are happy with how the layout appears. This will create a new view, which will be added to the Local Host Viewer Collections.

Add View

( OK ) (CANCEL)

1. To populate cameras to your new view, find the device (NVR, DHD, NAV) or individual cameras under your ‘Private Collections’ menu. Tick the boxes next to the devices you want to populate.

1. Left click and drag the highlighted/ticked devices and to your new view window. If you want to start from Channel 1, drag to the first box, if you would like to start from Channel 4, start from the fourth box etc.

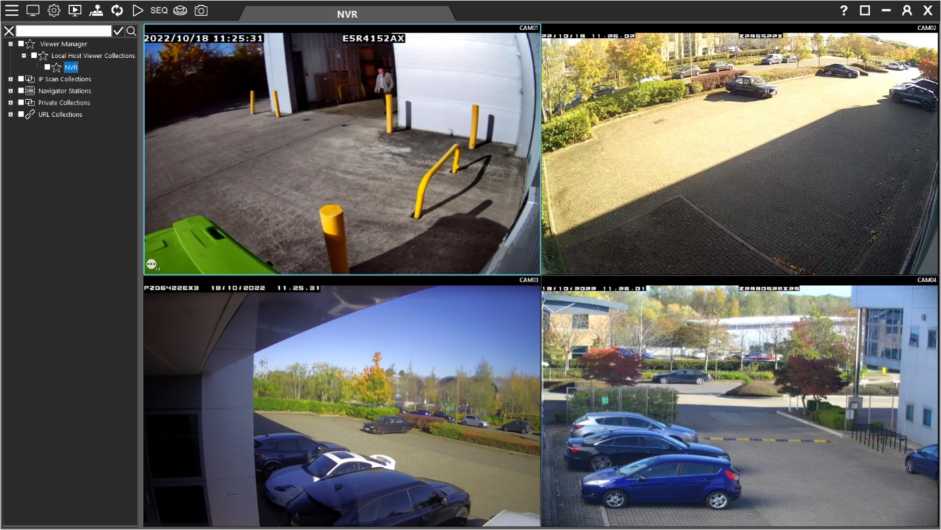

6) Your camera views should now appear in the windows.

Editing a View:

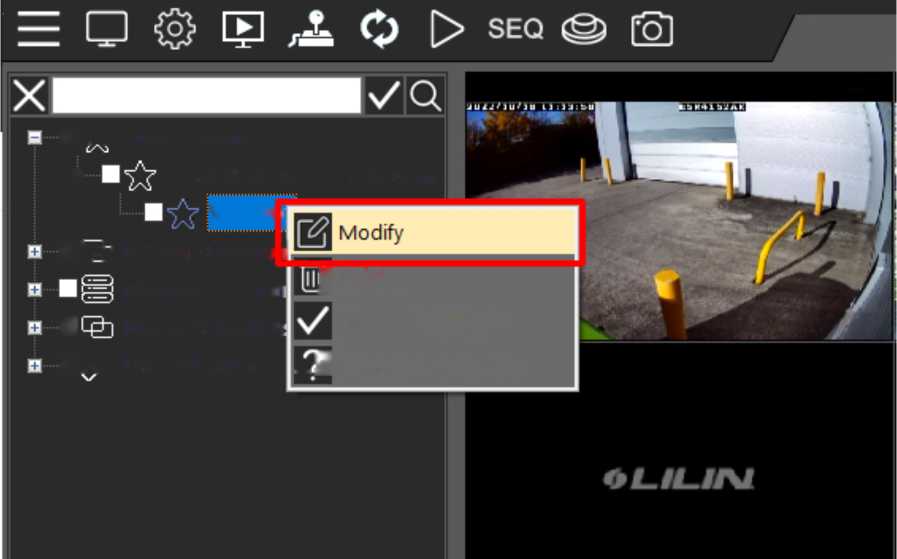

1. To edit an existing view, right click on the view and select ‘Modify’ from the mini menu that appears.

View #ı¹

J Delete

Channel Highlight _ J Device Information

CAM01

■ /y Vievver Manager

H Local Hoşt Vievver Collections

■ Lpjj İP Scan Collectio ı| Navigator Station

■ Private Collection:

■ /P URL Collections

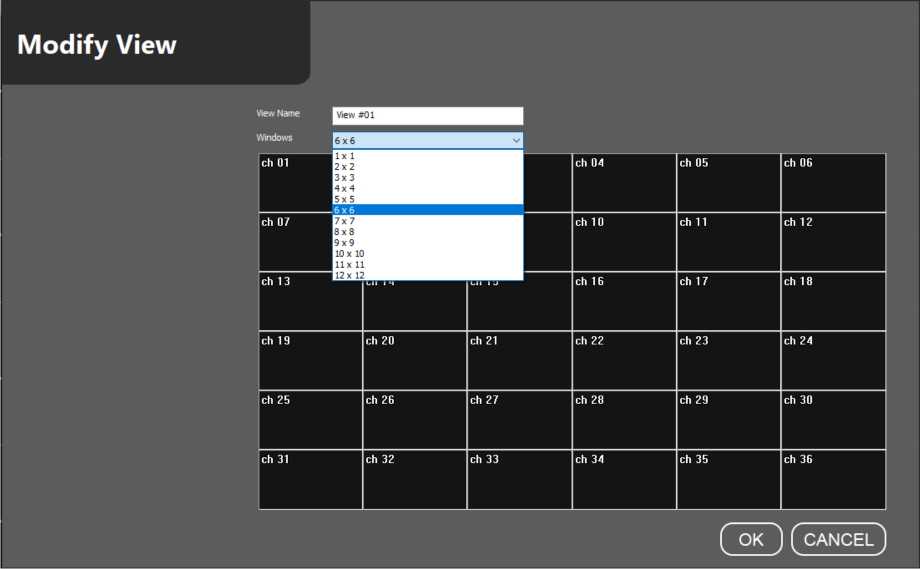

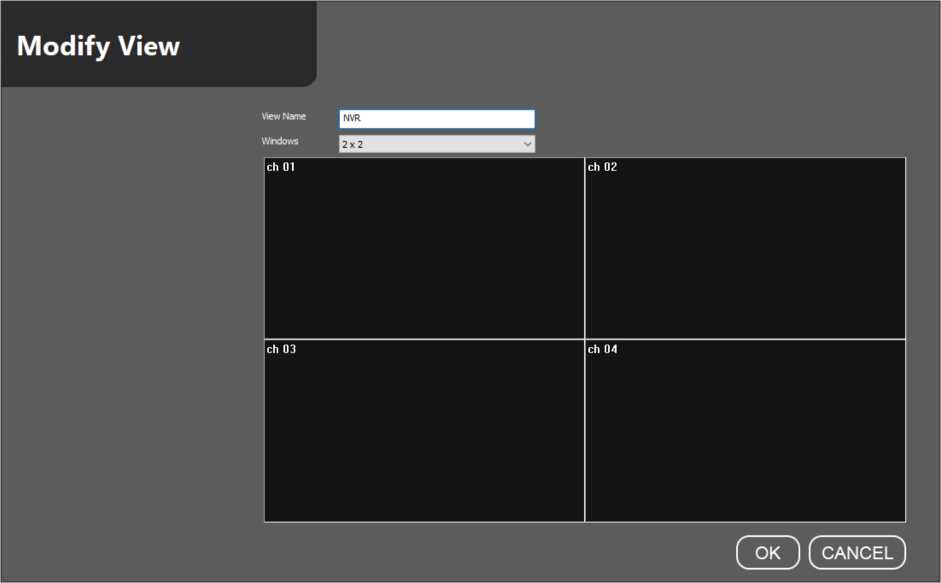

1. A new window will appear. Select the number of channels you would like the view to display from the dropdown list.

3) You can also rename the view if required.

4) Click ‘OK’ and this will save your changes. Your view should have changed; if it has not, try clicking on a different view and then back in to your edited view, to trigger a reload.

LILIN Client

Playback & Backup

1) To access playback through Client, simply click the icon below, which can be found on the top menu bar. This will load the multi-channel playback feature.

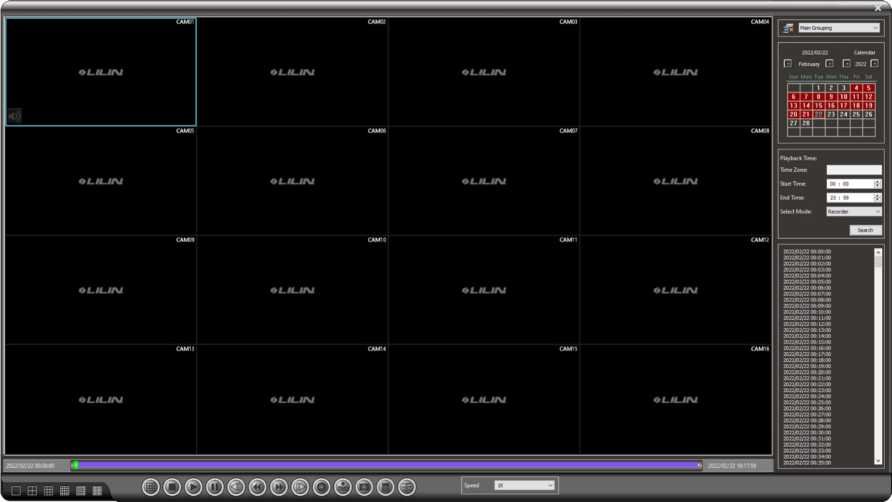

2) The Playback window will now be displayed.

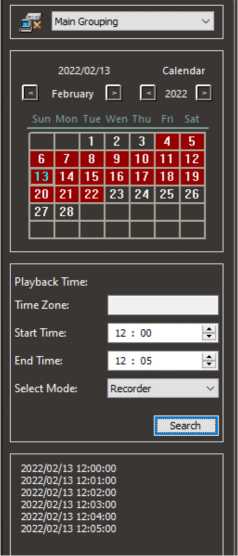

On the right-hand side of the screen is a calendar and time search function.

Dates coloured in red on the calendar have recorded footage.

Click on the required date on the calendar and all available data for that date will populate the section below in 1-minute sections. You can refine these results by filtering for a specific time range.

You can see in the image to the right we have refined our search to a 5 minute period.

To play a video file, simply click on the minute you want to view and the video from all cameras at that time will play automatically. If you want to view one camera in full screen, simply double click on that channel.

1. To backup video, ensure that you have filtered your search down to the correct date and times required, then click the ‘backup’ icon from the menu at the bottom of the screen.

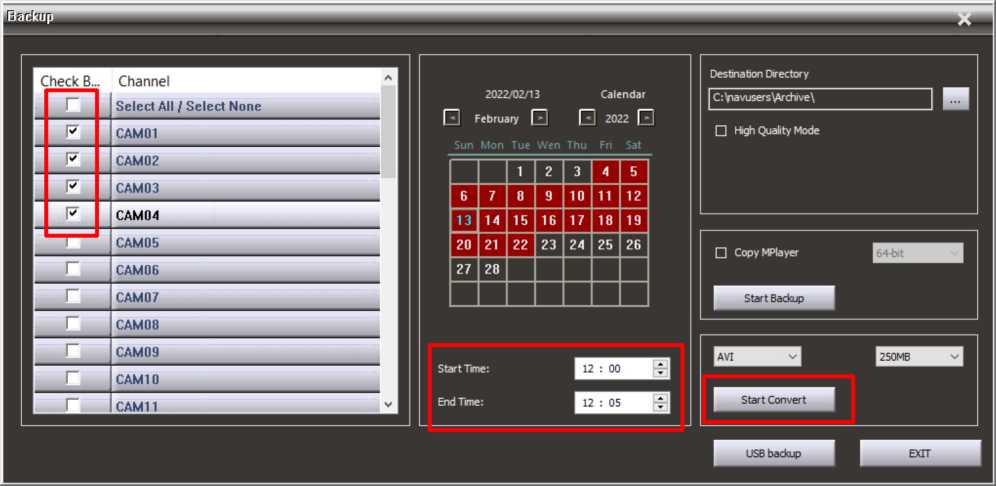

1. The backup menu will now open. This menu should load with your filtered date and times from the last step, but if these are incorrect you can adjust them here in the middle menu.

Select the cameras you want to include in your backup and click ‘Start Convert’ as shown above. This will create a .AVI file of the selected data.
